Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

30
profiles matching · Download CSV
30 profiles
Cards Table
Sort
Part Width Height Material Mount Style
Trim Seals Remove filter Reset all
  1. Cross-section drawing of PE-010
    PE-010
    PE-010
    W × H
    0.346 × — in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  2. Cross-section drawing of PTL-124
    PTL-124
    PTL-124
    W × H
    1.045 × 0.750 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  3. Cross-section drawing of PTL-125
    PTL-125
    PTL-125
    W × H
    1.805 × 0.650 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  4. Cross-section drawing of SD-108-T
    SD-108-T
    SD-108-T
    W × H
    0.400 × 0.996 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  5. Cross-section drawing of SD-108-T-130-Opening
    SD-108-T-130-Opening
    SD-108-T .130 Opening
    W × H
    0.400 × 0.996 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  6. Cross-section drawing of SD-110-Dense
    SD-110-Dense
    SD-110 Dense
    W × H
    0.720 × 0.582 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  7. Cross-section drawing of SD-110-T
    SD-110-T
    SD-110-T
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  8. Cross-section drawing of SD-110-T-AL-1875-IN-Opening
    SD-110-T-AL-1875-IN-Opening
    SD-110-T-AL-.1875 IN Opening
    W × H
    0.500 × 1.040 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  9. Cross-section drawing of SD-110-T-W
    SD-110-T-W
    SD-110-T-W
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  10. Cross-section drawing of SD-111
    SD-111
    SD-111 w/ .060 Opening
    W × H
    1.250 × 0.500 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

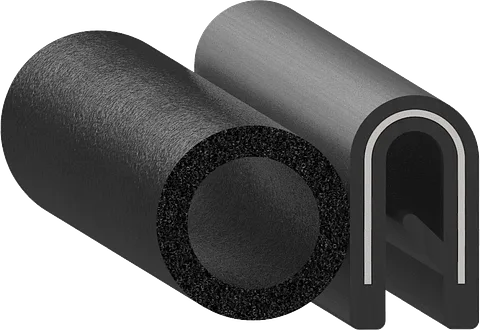

  11. Cross-section drawing of SD-1205-437in-Side-Bulb
    SD-1205-437in-Side-Bulb
    SD-1205 w/ .437in Side Bulb
    W × H
    0.727 × 0.550 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  12. Cross-section drawing of SD-1205-437in-Top-Bulb
    SD-1205-437in-Top-Bulb
    SD-1205 w/ 0.437in Top Bulb
    W × H
    0.437 × 0.987 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  13. Cross-section drawing of SD-1205-AL-0625in-375in-Top-Bulb
    SD-1205-AL-0625in-375in-Top-Bulb
    SD-1205-AL-1/16in-3/8in Top Bulb
    W × H
    0.375 × 0.925 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  14. Cross-section drawing of SD-1205-AL-0625in-625in-Top-Bulb
    SD-1205-AL-0625in-625in-Top-Bulb
    SD-1205-AL-1/16in-5/8in Top Bulb
    W × H
    0.625 × 1.175 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  15. Cross-section drawing of SD-1205-AL-1875in-437in-Top-Bulb
    SD-1205-AL-1875in-437in-Top-Bulb
    SD-1205-AL-3/16in-7/16in Top Bulb
    W × H
    0.438 × 0.988 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  16. Cross-section drawing of SD-1205-AL-1875in-625in-Top-Bulb
    SD-1205-AL-1875in-625in-Top-Bulb
    SD-1205-AL-3/16in-5/8in Top Bulb
    W × H
    0.625 × 1.175 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

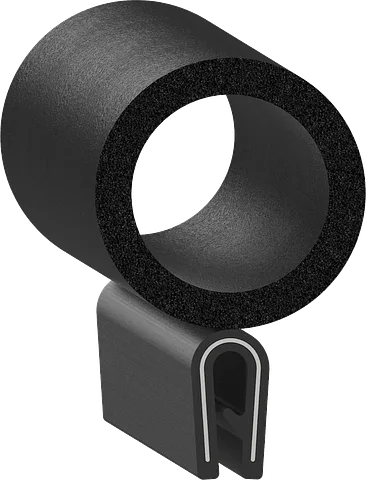

  17. Cross-section drawing of SD-1205-T-W-1in-Bulb
    SD-1205-T-W-1in-Bulb
    SD-1205 T w/ 1in Bulb
    W × H
    0.550 × 1.000 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  18. Cross-section drawing of SD-120-AA
    SD-120-AA
    SD-120-AA
    W × H
    0.950 × 0.550 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

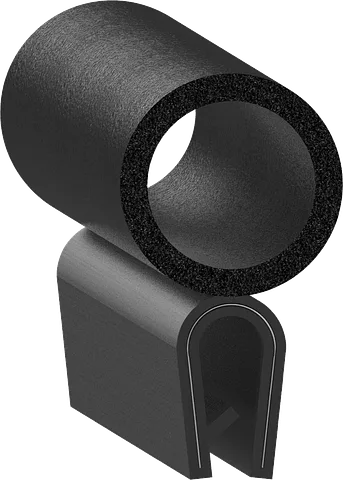

  19. Cross-section drawing of SD-120-AA-T
    SD-120-AA-T
    SD-120-AA-T
    W × H
    0.625 × 1.156 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  20. Cross-section drawing of SD-120-AAT-Offset
    SD-120-AAT-Offset
    SD-120-AAT-Offset
    W × H
    0.650 × 1.156 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

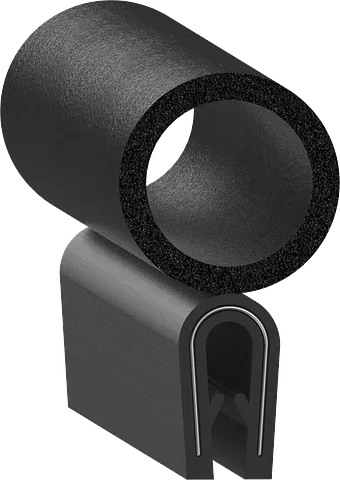

  21. Cross-section drawing of SD-122-AA-T
    SD-122-AA-T
    SD-122-AA-T
    W × H
    0.650 × 1.180 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

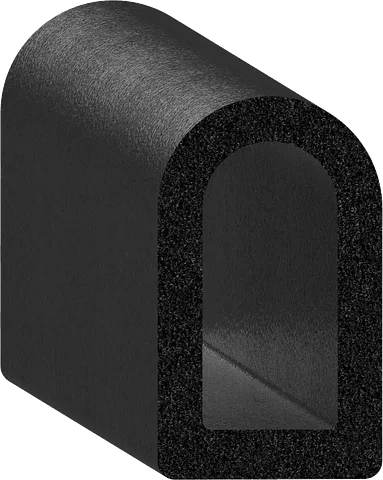

  22. Cross-section drawing of SD-124
    SD-124
    SD-124
    W × H
    1.140 × 0.550 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  23. Cross-section drawing of SD-127
    SD-127
    SD-127
    W × H
    1.125 × 0.850 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

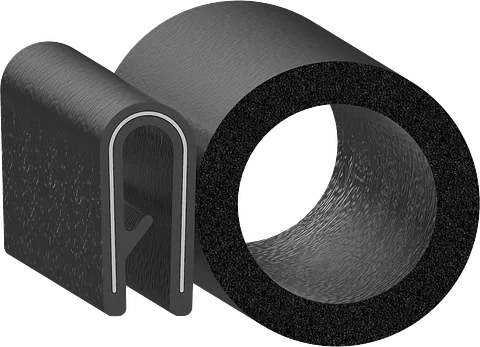

  24. Cross-section drawing of SD-1400-AL-1in-Bulb
    SD-1400-AL-1in-Bulb
    SD-1400-AL w/ 1in Bulb
    W × H
    1.330 × 1.000 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  25. Cross-section drawing of SD-1400-NAV-05in
    SD-1400-NAV-05in
    SD-1400 w/ NAV 1/2in
    W × H
    0.785 × 0.863 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  26. Cross-section drawing of SD-1400-NAV-120in
    SD-1400-NAV-120in
    SD-1400 w/ NAV-120
    W × H
    0.915 × 0.925 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  27. Cross-section drawing of SD-1400-NAV-1in
    SD-1400-NAV-1in
    SD-1400 w/ NAV 1in
    W × H
    1.300 × 1.110 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

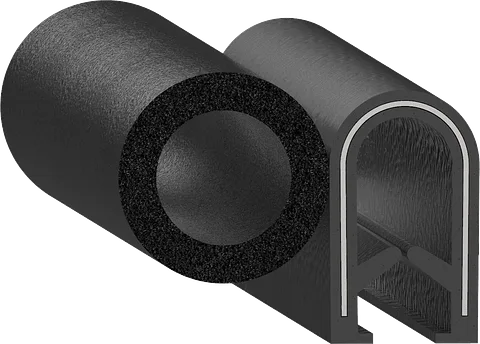

  28. Cross-section drawing of SD-1435-NAV-120-Bulb
    SD-1435-NAV-120-Bulb
    SD-1435 w/ NAV 120 Bulb
    W × H
    1.070 × 0.765 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  29. Cross-section drawing of SD-1450-110-T
    SD-1450-110-T
    SD-1450-110-T
    W × H
    0.670 × 1.080 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  30. Cross-section drawing of SD-1875-W-750-BULB
    SD-1875-W-750-BULB
    SD-1875 w/ 3/4in Bulb White
    W × H
    1.540 × 1.027 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
