Seal catalogue · Trim Seals · Part

SD-110-T copy

SD-110-T

W × H0.500 × 1.040 in MaterialPVC

Trim Seals

Request a quote for SD-110-T → Spec sheet (PDF) Print spec sheet

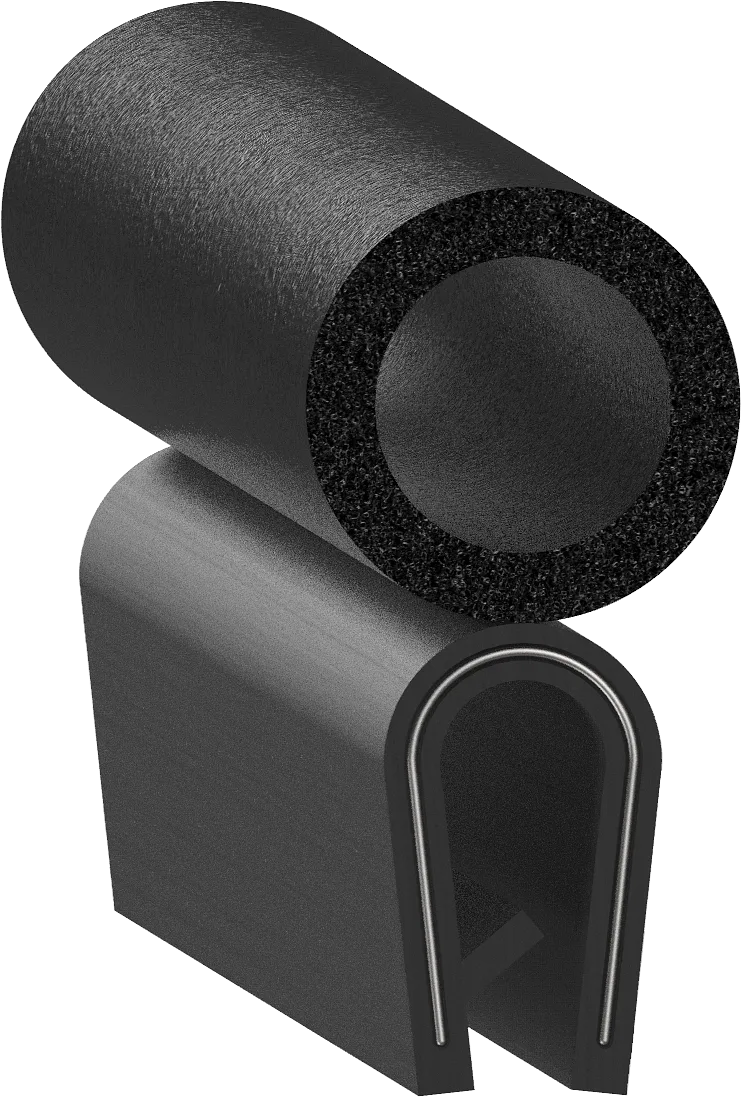

Cross-section drawing of SD-110-T — Cross-section — SD-110-TNot to scale

Specification

As drawn.

Specification for SD-110-T
Width	0.500" 12.7 mm
Height	1.040" 26.4 mm
Flange	0.185" 4.7 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	Black
Mount	Push On
Bulb position	Top
Core	1in Stamped Steel
Industries	Recreational Vehicles and Construction Equipment

Coil lengths: 75 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-108-T 0.400 × 0.996 in · PVC SD-108-T-130-Opening 0.400 × 0.996 in · PVC SD-110-T-W 0.500 × 1.040 in · PVC SD-120-AA-T 0.625 × 1.156 in · PVC SD-122-AA-T 0.650 × 1.180 in · PVC
