Seal catalogue · Trim Seals · Part

SD-108-T-130-Opening copy

SD-108-T .130 Opening

W × H0.400 × 0.996 in MaterialPVC

Trim Seals

Request a quote for SD-108-T-130-Opening → Spec sheet (PDF) Print spec sheet

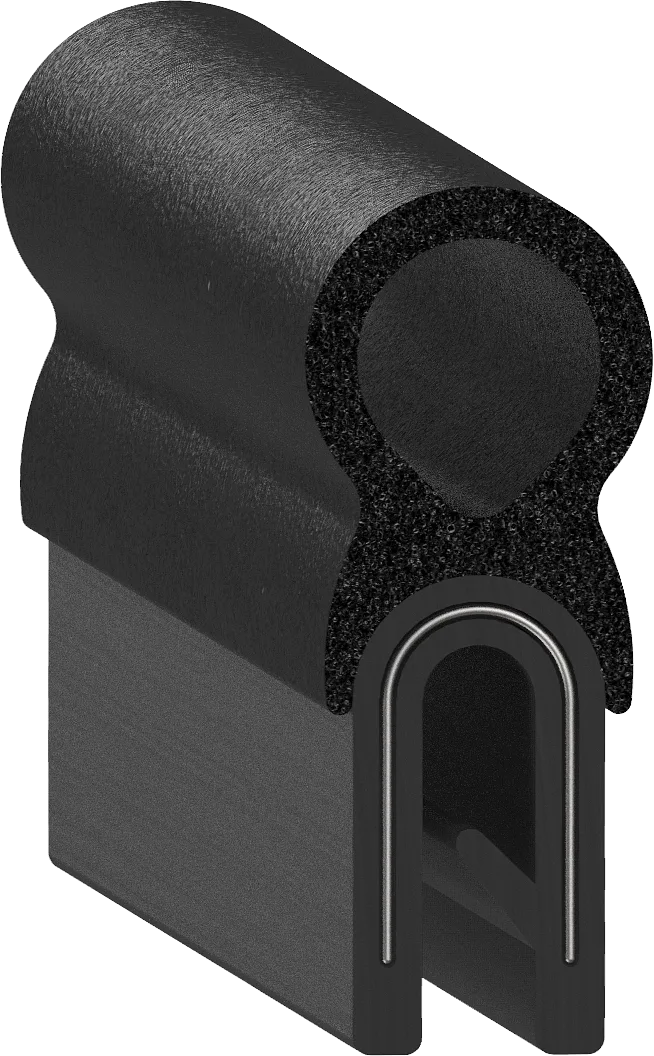

Cross-section drawing of SD-108-T-130-Opening — Cross-section — SD-108-T-130-OpeningNot to scale

Specification

As drawn.

Specification for SD-108-T-130-Opening
Width	0.400" 10.2 mm
Height	0.996" 25.3 mm
Flange	0.130" 3.3 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	Black
Mount	Push On
Bulb position	Top
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-108-T 0.400 × 0.996 in · PVC SD-110-T 0.500 × 1.040 in · PVC SD-120-AA-T 0.625 × 1.156 in · PVC SD-122-AA-T 0.650 × 1.180 in · PVC SD-1450-110-T 0.670 × 1.080 in · PVC
