Seal catalogue · Trim Seals · Part

SD-1450-110-T copy

SD-1450-110-T

W × H0.670 × 1.080 in MaterialPVC

Trim Seals

Request a quote for SD-1450-110-T → Spec sheet (PDF) Print spec sheet

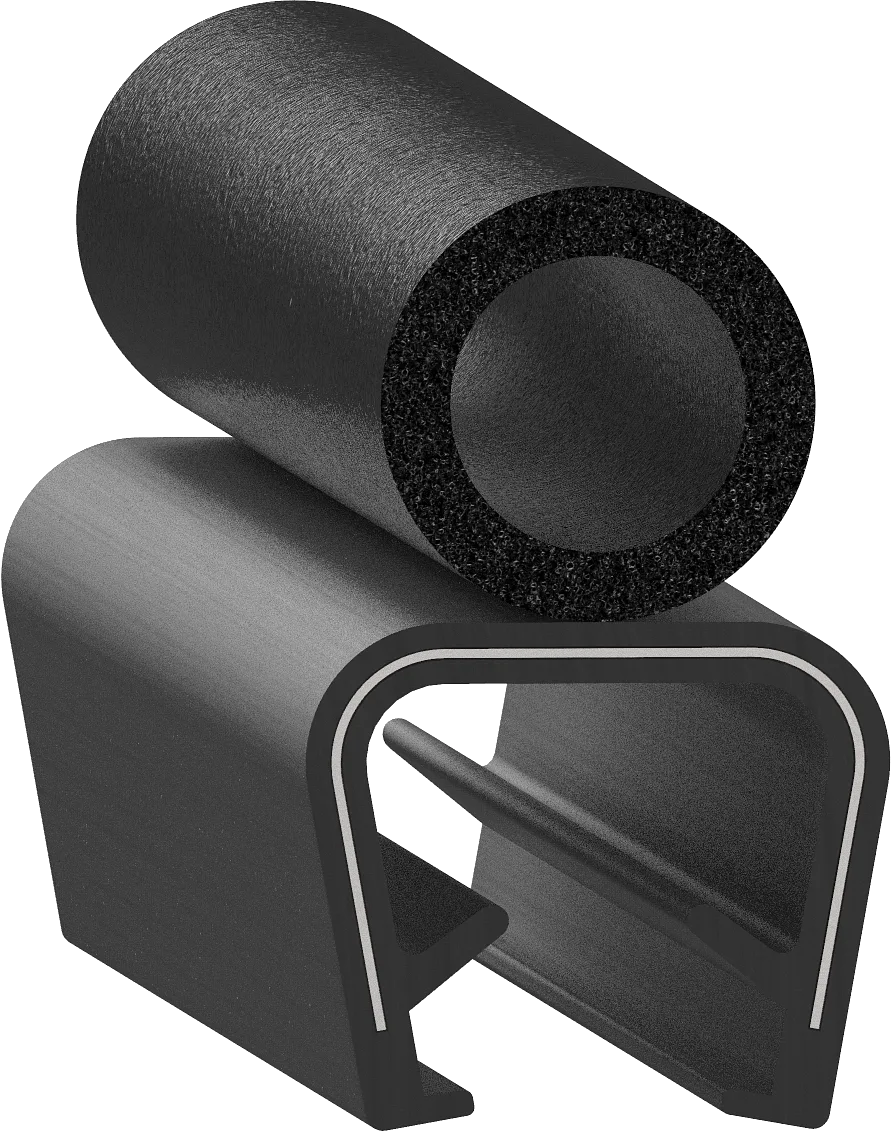

Cross-section drawing of SD-1450-110-T — Cross-section — SD-1450-110-TNot to scale

Specification

As drawn.

Specification for SD-1450-110-T
Width	0.670" 17.0 mm
Height	1.080" 27.4 mm
Flange	0.529" 13.4 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Bulb position	Top
Core	1.4in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-108-T 0.400 × 0.996 in · PVC SD-108-T-130-Opening 0.400 × 0.996 in · PVC SD-120-AA-T 0.625 × 1.156 in · PVC

Need it in volume, or to a change?

Tell an engineer the application.

Request a quote →
