Seal catalogue · Trim Seals · Part

SD-110-T-W copy

SD-110-T-W

W × H0.500 × 1.040 in MaterialPVC

Trim Seals

Request a quote for SD-110-T-W → Spec sheet (PDF) Print spec sheet

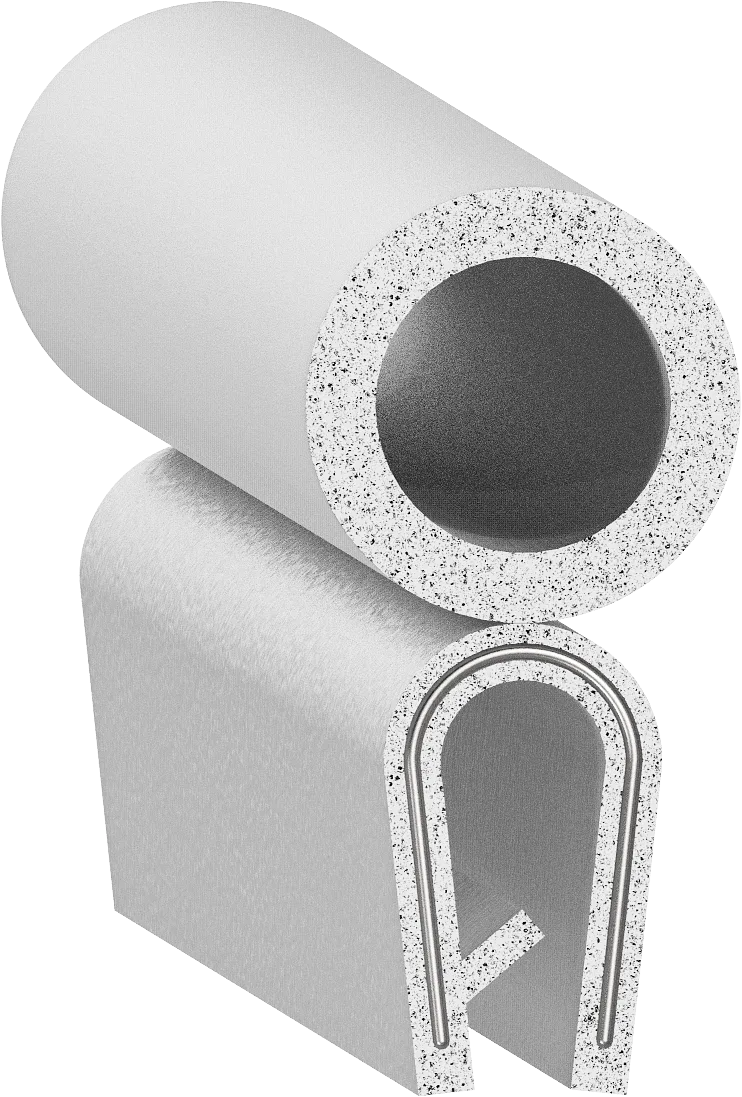

Cross-section drawing of SD-110-T-W — Cross-section — SD-110-T-WNot to scale

Specification

As drawn.

Specification for SD-110-T-W
Width	0.500" 12.7 mm
Height	1.040" 26.4 mm
Flange	0.190" 4.8 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	White
Mount	Push On
Bulb position	Top
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-110-T 0.500 × 1.040 in · PVC SD-120-AA-T 0.625 × 1.156 in · PVC SD-122-AA-T 0.650 × 1.180 in · PVC
