Seal catalogue
· Trim Seals
· Part

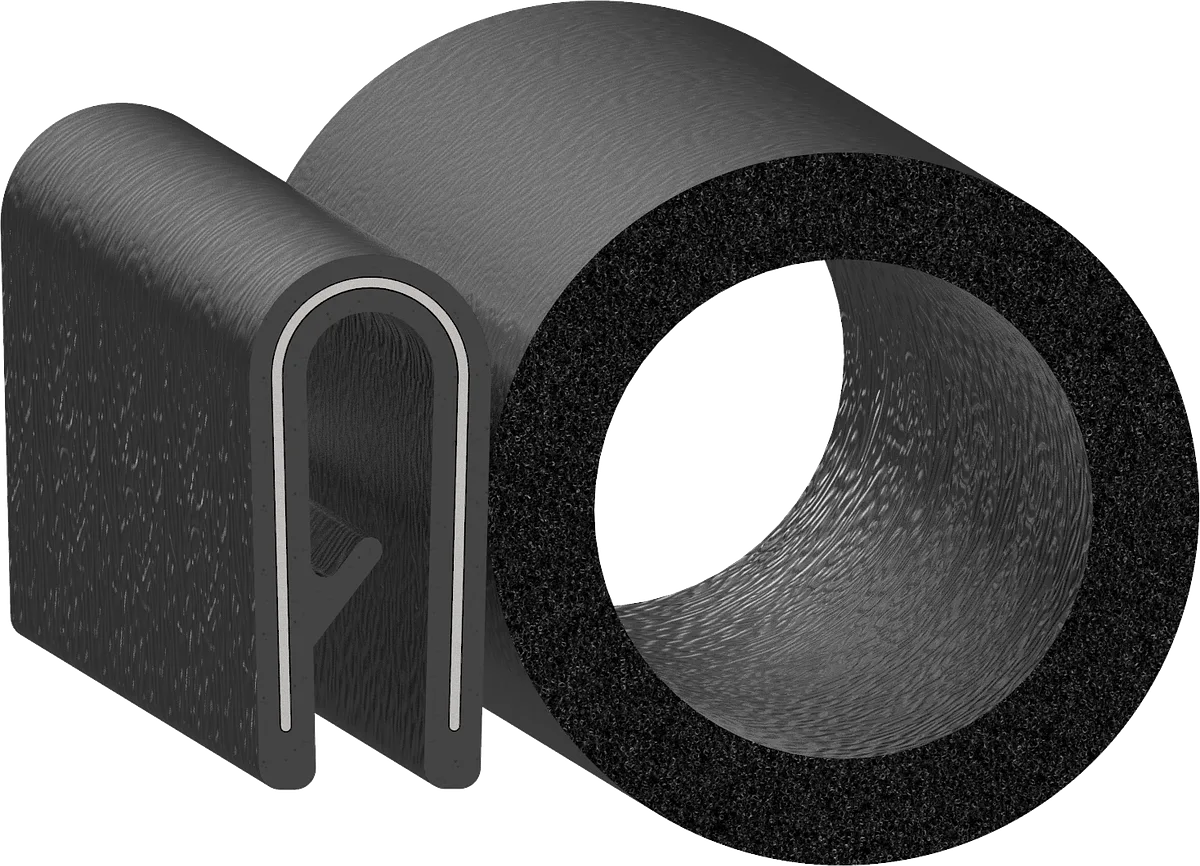

SD-1400-AL-1in-Bulb copy
SD-1400-AL w/ 1in Bulb
W × H1.330 × 1.000 in
MaterialPVC
Specification
As drawn.
| Width | 1.330" 33.8 mm |
|---|---|
| Height | 1.000" 25.4 mm |
| Flange | 0.150" 3.8 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 80 Shore A |
| Colour | Black |
| Mount | Push On |
| Bulb position | Side |
| Core | 1.413in Stamped Aluminum |
Dimensions in inches to three places, as on the drawing; millimetres computed.
3 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
