Seal catalogue
· Trim Seals
· Part
SD-1435-NAV-120-Bulb copy

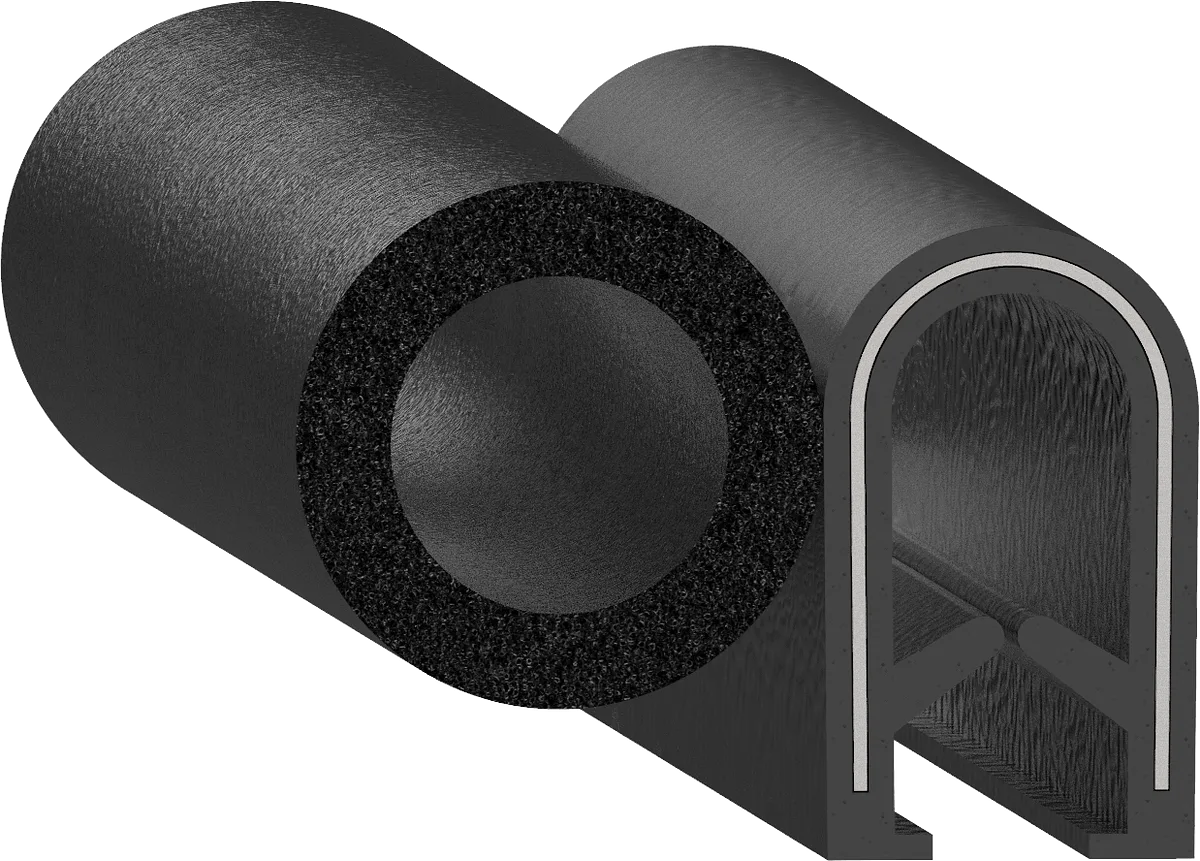

SD-1435 w/ NAV 120 Bulb
W × H1.070 × 0.765 in
MaterialPVC
Specification
As drawn.
| Width | 1.070" 27.2 mm |
|---|---|
| Height | 0.765" 19.4 mm |
| Flange | 0.285" 7.2 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 80 Shore A |
| Colour | Black |
| Mount | Push On |
| Bulb position | Side |
| Core | 1.4in Stamped Steel |
| Industries | Marine |
Dimensions in inches to three places, as on the drawing; millimetres computed.
3 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
