· Part

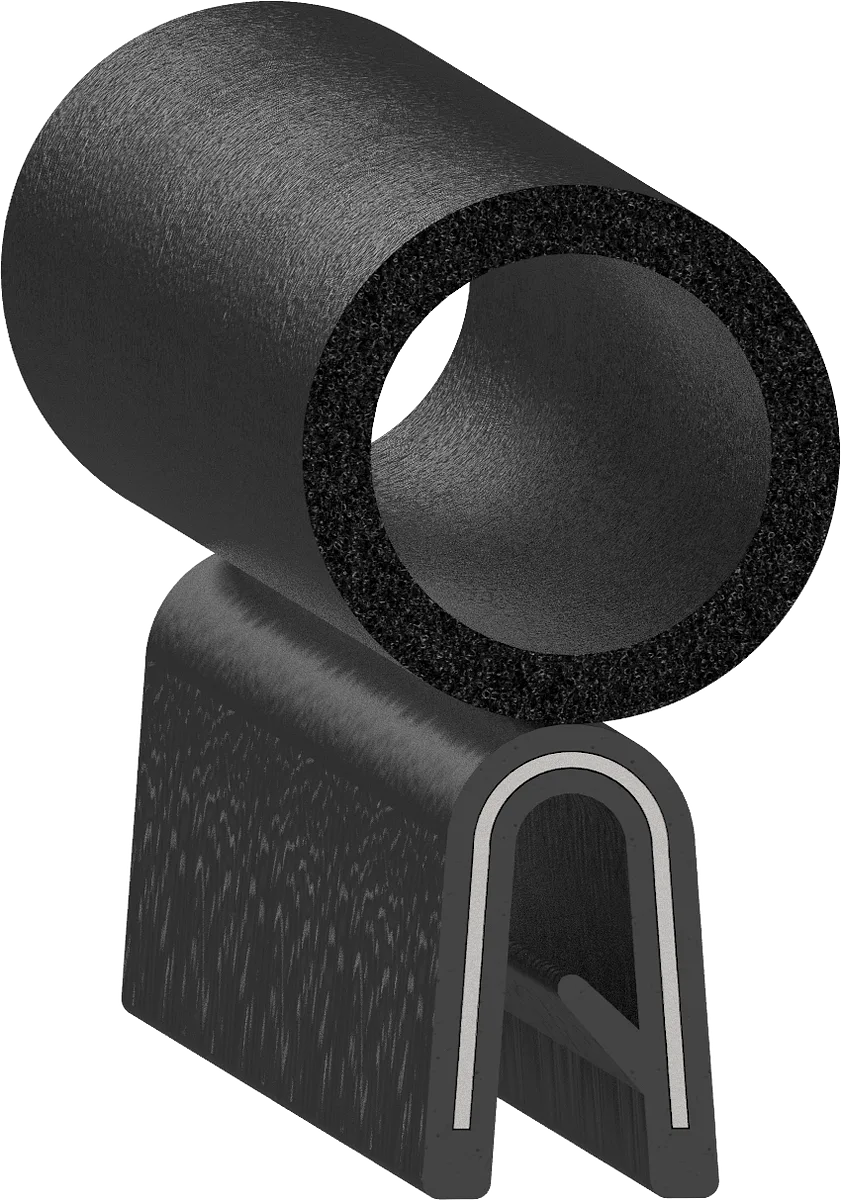

SD-1205-AL-1875in-625in-Top-Bulb copy
SD-1205-AL-3/16in-5/8in Top Bulb
W × H0.625 × 1.175 in
MaterialPVC
Specification
As drawn.
| Width | 0.625" 15.9 mm |
|---|---|
| Height | 1.175" 29.8 mm |
| Flange | 0.188" 4.8 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 78 Shore A |
| Colour | Black |
| Texture | Leather Grain |
| Mount | Push On |
| Bulb position | Top |
| Core | 1in Stamped Aluminum |
Dimensions in inches to three places, as on the drawing; millimetres computed.
Need it in volume, or to a change?
