Seal catalogue
· Trim Seals
· Part

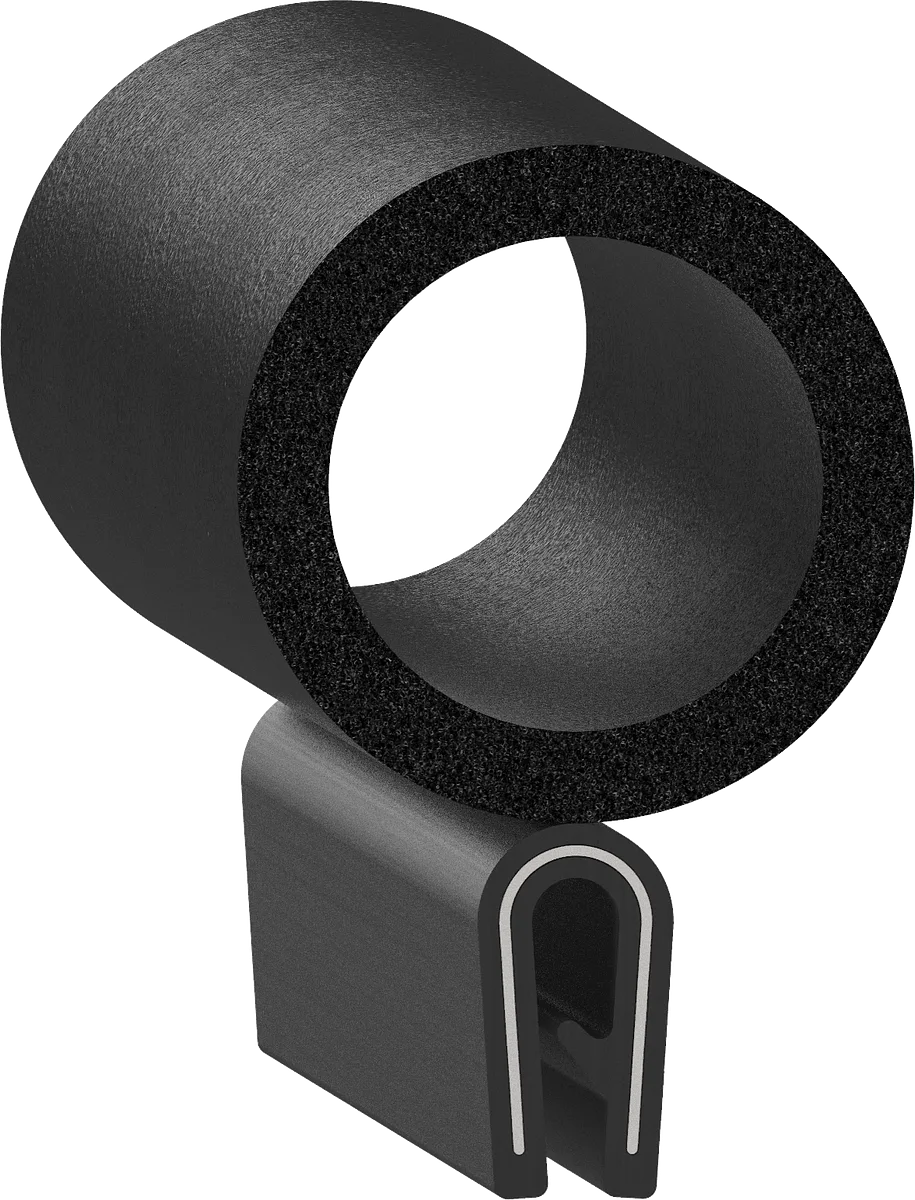

SD-1205-T-W-1in-Bulb copy
SD-1205 T w/ 1in Bulb
W × H0.550 × 1.000 in
MaterialPVC
Specification
As drawn.
| Width | 0.550" 14.0 mm |
|---|---|
| Height | 1.000" 25.4 mm |
| Flange | 0.130" 3.3 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 80 Shore A |
| Colour | Black |
| Mount | Push On |
| Bulb position | Top |
| Core | 1in Stamped Steel |
Dimensions in inches to three places, as on the drawing; millimetres computed.
