Seal catalogue
· Trim Seals
· Part

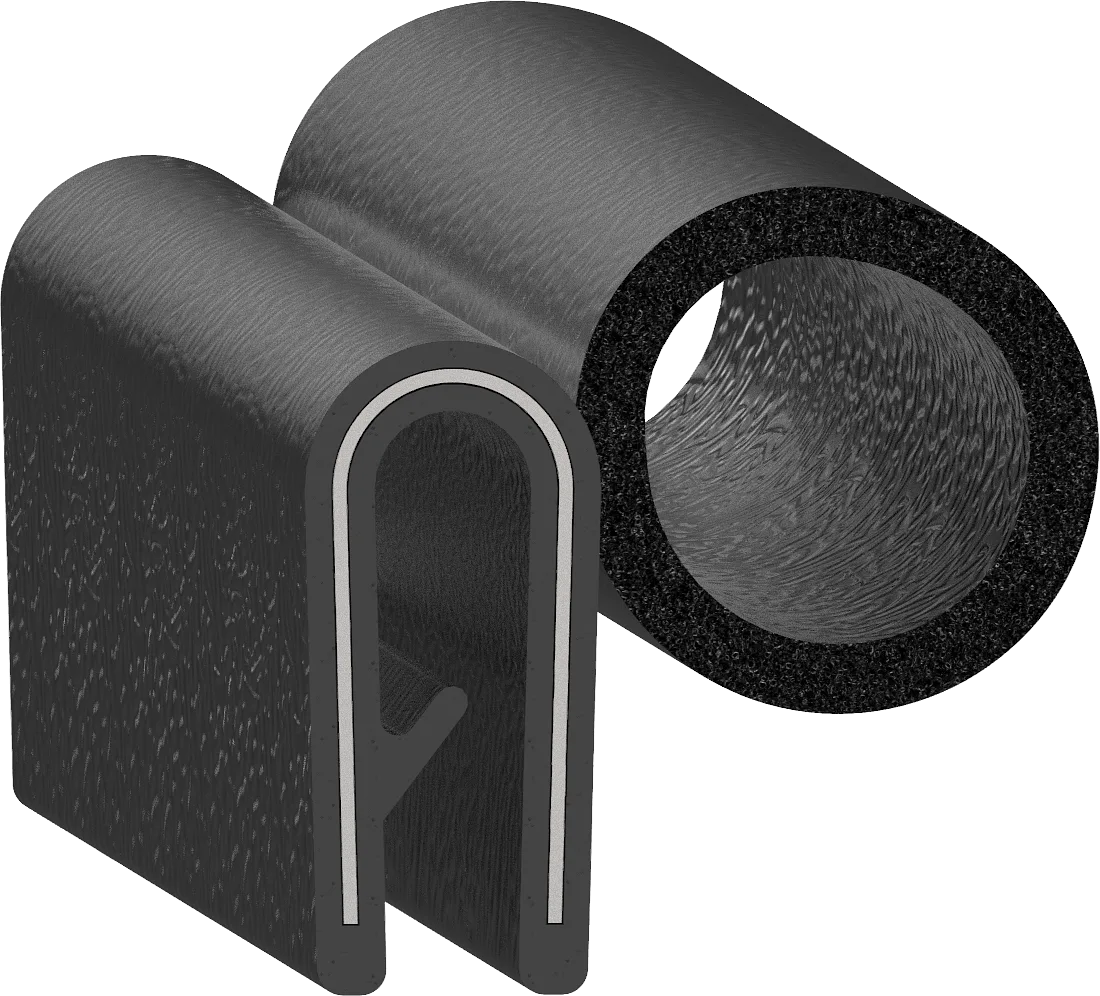

SD-1400-NAV-120in copy
SD-1400 w/ NAV-120
W × H0.915 × 0.925 in
MaterialPVC
Specification
As drawn.
| Width | 0.915" 23.2 mm |
|---|---|
| Height | 0.925" 23.5 mm |
| Flange | 0.150" 3.8 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 78 Shore A |
| Colour | Black |
| Texture | Leather Grain |
| Mount | Push On |
| Bulb position | Side |
| Core | 1.4in Stamped Steel |
Dimensions in inches to three places, as on the drawing; millimetres computed.
