SD-1875-W-750-BULB copy
SD-1875 w/ 3/4in Bulb White
W × H1.540 × 1.027 in
MaterialPVC
Specification

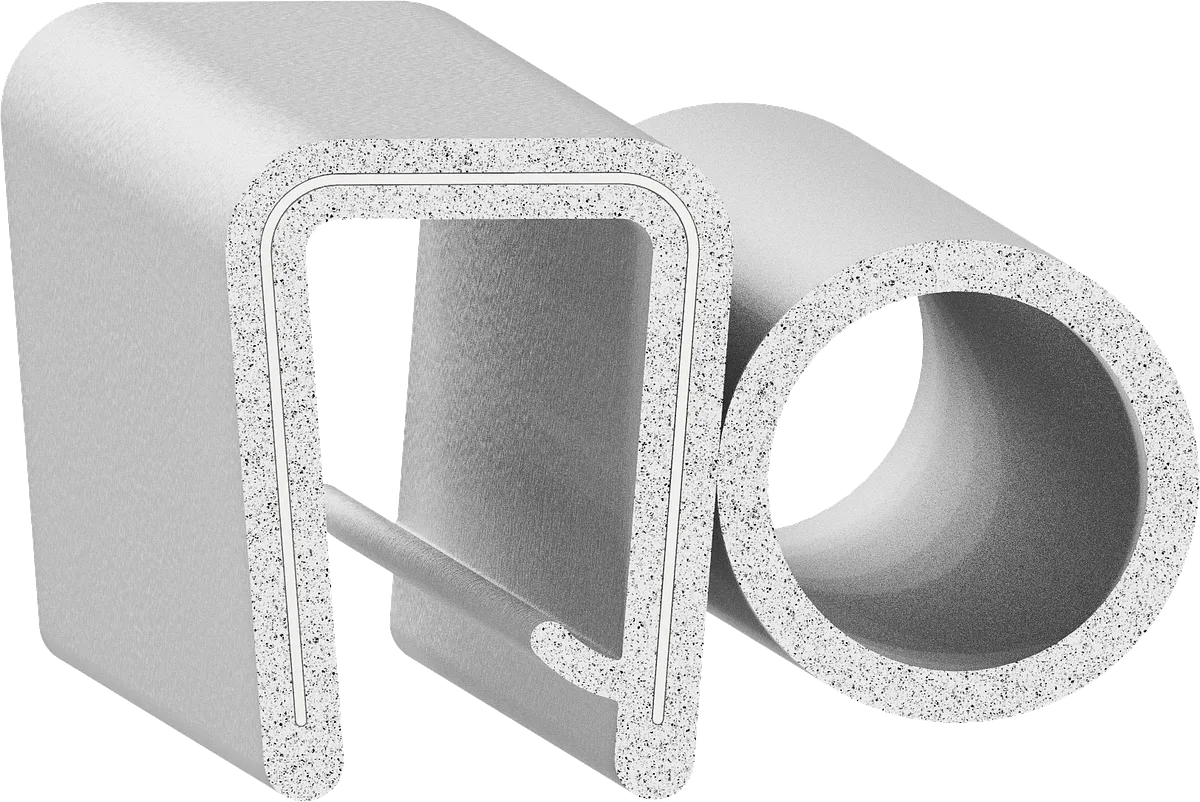

As drawn.
| Width | 1.540" 39.1 mm |
|---|---|
| Height | 1.027" 26.1 mm |
| Flange | 0.540" 13.7 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 78 Shore A |
| Colour | White |
| Mount | Push On |
| Bulb position | Side |
| Core | 2in Stamped Steel |
Dimensions in inches to three places, as on the drawing; millimetres computed.
