Seal catalogue · Trim Seals · Part

SD-111 copy

SD-111 w/ .060 Opening

W × H1.250 × 0.500 in MaterialPVC

Trim Seals

Request a quote for SD-111 → Spec sheet (PDF) Print spec sheet

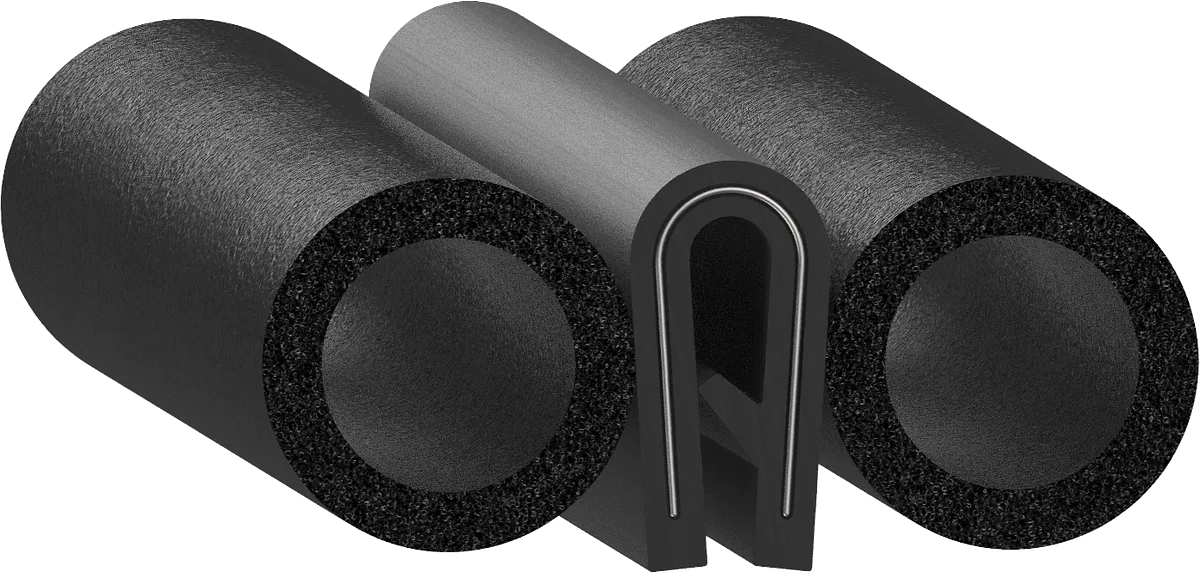

Cross-section drawing of SD-111 — Cross-section — SD-111Not to scale

Specification

As drawn.

Specification for SD-111
Width	1.250" 31.8 mm
Height	0.500" 12.7 mm
Flange	0.110" 2.8 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.
