PTL-124

W × H1.045 × 0.750 in MaterialPVC

Trim Seals

Request a quote for PTL-124 → Spec sheet (PDF) Print spec sheet

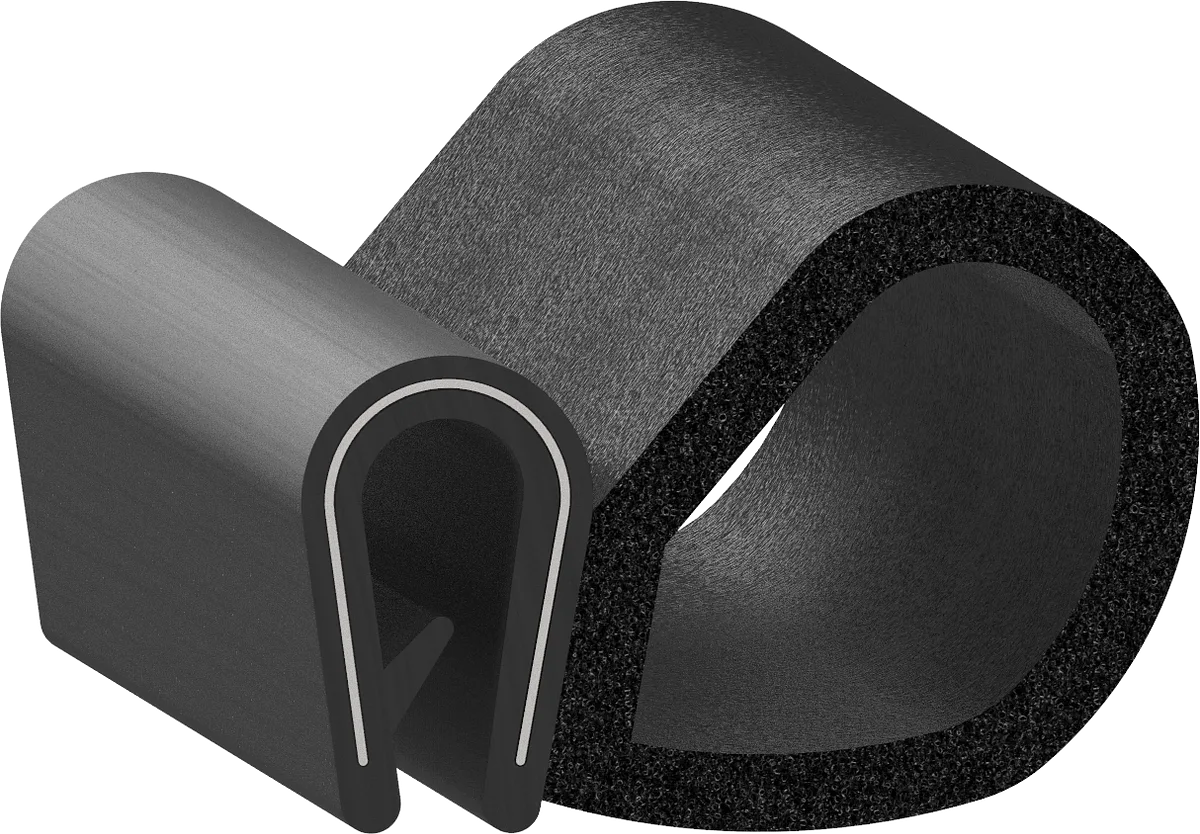

Cross-section drawing of PTL-124 — Cross-section — PTL-124Not to scale

Specification

As drawn.

Specification for PTL-124
Width	1.045" 26.5 mm
Height	0.750" 19.0 mm
Flange	0.188" 4.8 mm
Material	PVC
Second material	Rubber
Type	Sponge
Durometer	80 Shore A
Colour	Black
Mount	Push On
Bulb position	Side
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

PTL-125 1.805 × 0.650 in · PVC SD-110-Dense 0.720 × 0.582 in · PVC SD-120-AA 0.950 × 0.550 in · PVC SD-124 1.140 × 0.550 in · PVC
