Seal catalogue
· Trim Seals
· Part

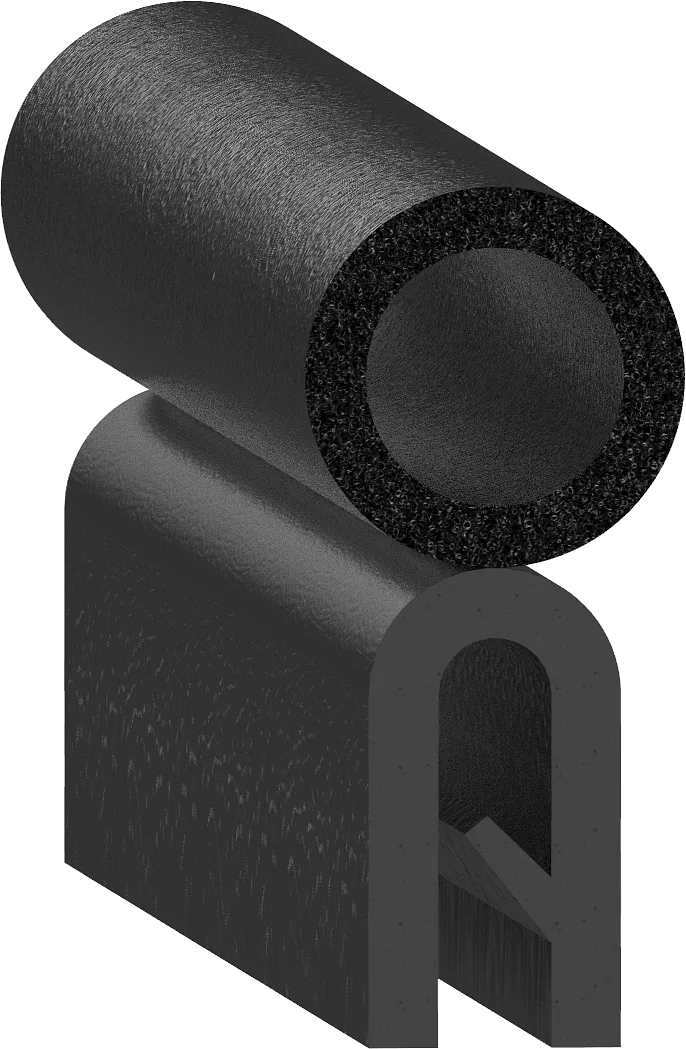

SD-1205-437in-Top-Bulb copy
SD-1205 w/ 0.437in Top Bulb
W × H0.437 × 0.987 in
MaterialPVC
Specification
As drawn.
| Width | 0.437" 11.1 mm |
|---|---|
| Height | 0.987" 25.1 mm |
| Flange | 0.130" 3.3 mm |
| Material | PVC |
| Second material | Rubber |
| Type | Sponge |
| Durometer | 78 Shore A |
| Colour | Black |
| Texture | Leather Grain |
| Mount | Push On |
| Bulb position | Top |
| Core | 1in Stamped Steel |
Dimensions in inches to three places, as on the drawing; millimetres computed.
Need it in volume, or to a change?
