Seal catalogue
· Trim Seals
· Part

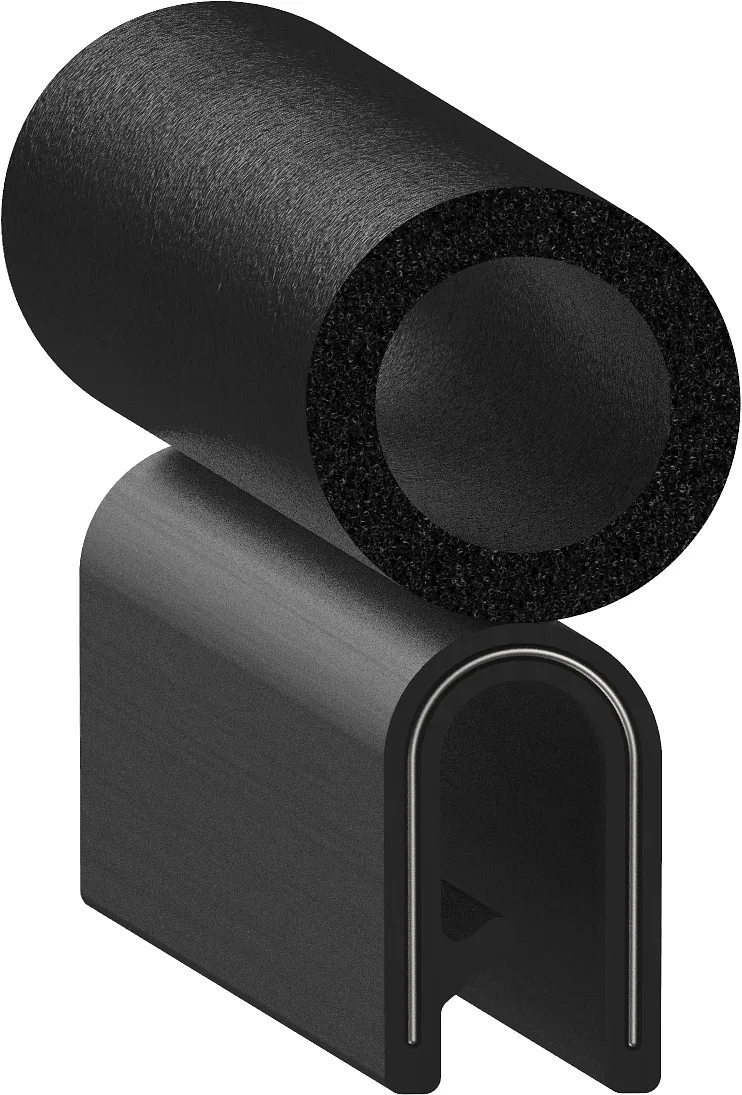

SD-110-T-AL-1875-IN-Opening copy
SD-110-T-AL-.1875 IN Opening
W × H0.500 × 1.040 in
MaterialRubber
Specification
As drawn.
| Width | 0.500" 12.7 mm |
|---|---|
| Height | 1.040" 26.4 mm |
| Flange | 0.188" 4.8 mm |
| Material | Rubber |
| Second material | PVC |
| Type | Sponge |
| Durometer | 2A4 (sponge grade) |
| Colour | Black |
| Texture | Leather Grain |
| Mount | Push On |
| Bulb position | Top |
| Core | 1in Stamped Aluminum |
| Shape | Bulb Seal |
Dimensions in inches to three places, as on the drawing; millimetres computed.
Need it in volume, or to a change?
