Seal catalogue · Trim Seals · Part

SD-120-AAT-Offset copy

SD-120-AAT-Offset

W × H0.650 × 1.156 in MaterialRubber
Trim Seals Bulb Seals
Request a quote for SD-120-AAT-Offset → Spec sheet (PDF) Print spec sheet

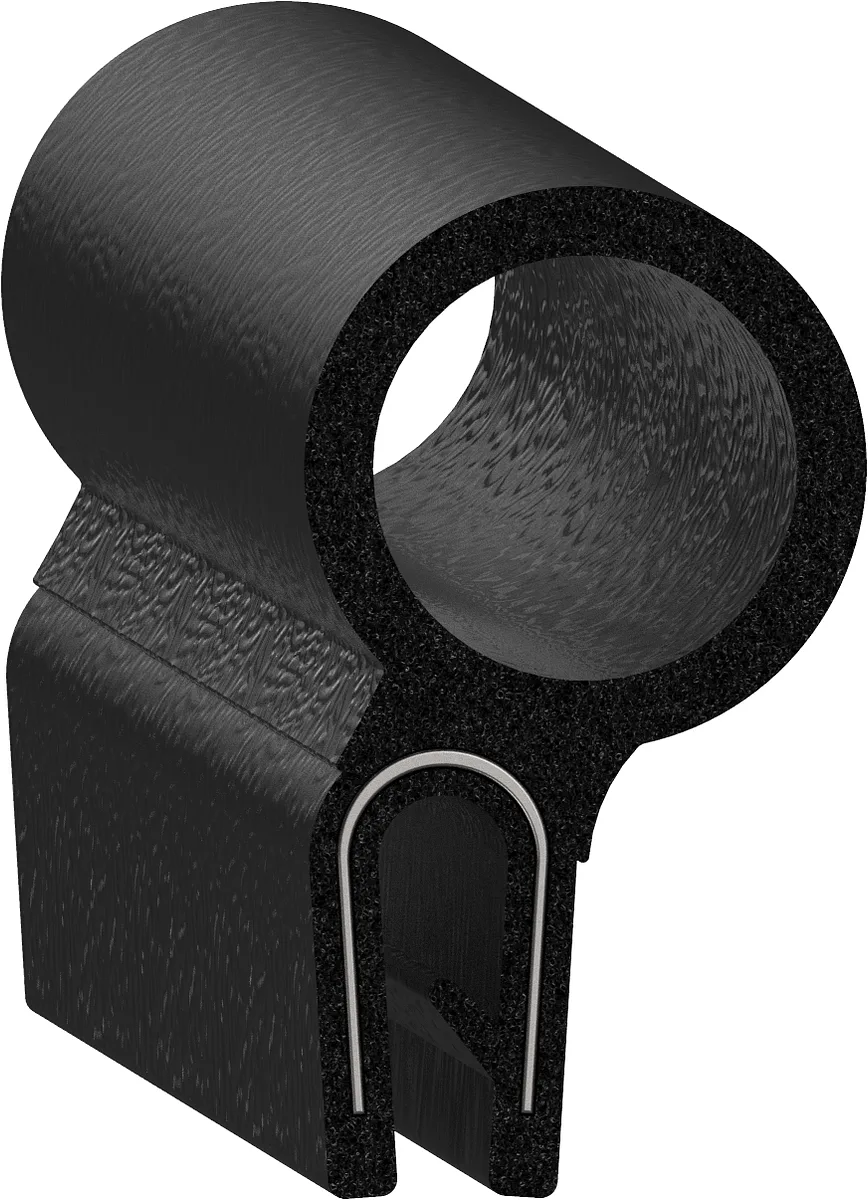

Cross-section drawing of SD-120-AAT-Offset
Cross-section — SD-120-AAT-OffsetNot to scale
Specification

As drawn.

Specification for SD-120-AAT-Offset
Width 0.650" 16.5 mm
Height 1.156" 29.4 mm
Flange 0.150" 3.8 mm
Material Rubber
Second material PVC
Type Sponge
Durometer 2A2 (sponge grade)
Colour Black
Texture Leather Grain
Mount Push On
Bulb position Top
Core 1in Stamped Steel
Second durometer80 Durometer
ShapeBulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
