Trim Finder · Edge Trims

Edge Trims from the seal catalogue.

An edge trim is typically used for to cover an edge of fiberglass, steel or some other material in order to increase safety or aesthetics. They can be made from rubber or plastic and most of the time will have a steel or wire core to increase the ability for it to clamp onto the flange.

85
profiles matching · Download CSV
85 profiles · page 2 of 3
Cards Table
Sort
Part Width Height Material Mount Style
Edge Trims Remove filter Reset all
  1. Cross-section drawing of NE8T7
    NE8T7
    NE8T7
    W × H
    0.345 × 0.090 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  2. Cross-section drawing of PTC01
    PTC01
    PTC01
    W × H
    0.346 × 0.144 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  3. Cross-section drawing of RE-055
    RE-055
    RE-055
    W × H
    0.250 × 0.500 in
    Material
    Neoprene
    Style
    Other Extrusion
    Quote Compare
  4. Cross-section drawing of RE-092
    RE-092
    RE-092
    W × H
    0.315 × 0.827 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare
  5. Cross-section drawing of RE-092-Gray
    RE-092-Gray
    RE-092 Gray
    W × H
    0.315 × 0.827 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare
  6. Cross-section drawing of RE-105
    RE-105
    RE-105
    W × H
    0.313 × 0.500 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare
  7. Cross-section drawing of RE-147
    RE-147
    RE-147
    W × H
    1.075 × 1.300 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare
  8. Cross-section drawing of RRT32-01
    RRT32-01
    RRT32-01
    W × H
    0.480 × 0.215 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  9. Cross-section drawing of SD-1130
    SD-1130
    SD-1130
    W × H
    0.260 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  10. Cross-section drawing of SD-1130-Herringbone
    SD-1130-Herringbone
    SD-1130 Herringbone
    W × H
    0.260 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  11. Cross-section drawing of SD-1130-W
    SD-1130-W
    SD-1130-W
    W × H
    0.260 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  12. Cross-section drawing of SD-1160
    SD-1160
    SD-1160
    W × H
    0.250 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  13. Cross-section drawing of SD-1160-W
    SD-1160-W
    SD-1160-W
    W × H
    0.250 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  14. Cross-section drawing of SD-1185
    SD-1185
    SD-1185
    W × H
    0.350 × 0.530 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  15. Cross-section drawing of SD-1185-plain
    SD-1185-plain
    SD-1185 Plain
    W × H
    0.350 × 0.530 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  16. Cross-section drawing of SD-1185-W
    SD-1185-W
    SD-1185-W
    W × H
    0.350 × 0.530 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  17. Cross-section drawing of SD-1188
    SD-1188
    SD-1188
    W × H
    0.300 × 0.900 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  18. Cross-section drawing of SD-1205
    SD-1205
    SD-1205
    W × H
    0.330 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  19. Cross-section drawing of SD-1205-0156-Opening
    SD-1205-0156-Opening
    SD-1205 0.156in Opening
    W × H
    0.315 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

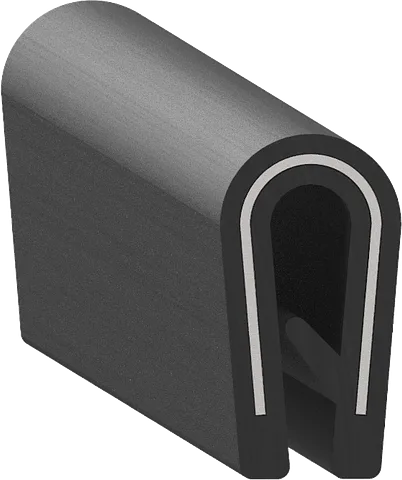

  20. Cross-section drawing of SD-1205-AL
    SD-1205-AL
    SD-1205-AL
    W × H
    0.350 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

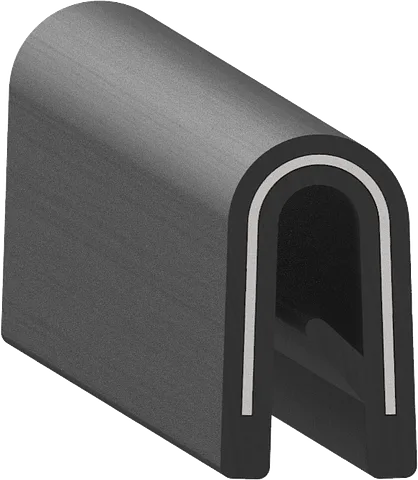

  21. Cross-section drawing of SD-1205-AL-0156-Opening
    SD-1205-AL-0156-Opening
    SD-1205 AL w/ 0.156in Opening
    W × H
    0.315 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  22. Cross-section drawing of SD-1205-NE-Seat
    SD-1205-NE-Seat
    SD-1205-NE Seat
    W × H
    0.321 × 0.535 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  23. Cross-section drawing of SD-1205-WT-150-Opening
    SD-1205-WT-150-Opening
    SD-1205-WT .150 Opening
    W × H
    0.340 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

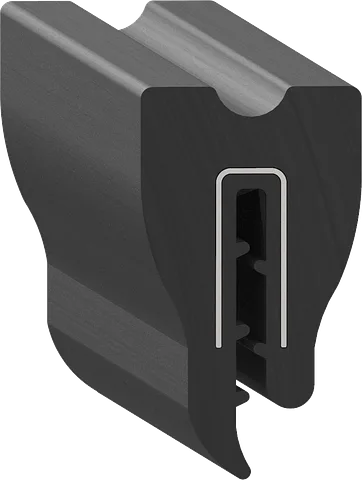

  24. Cross-section drawing of SD-12202
    SD-12202
    SD-12202
    W × H
    0.550 × 0.975 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

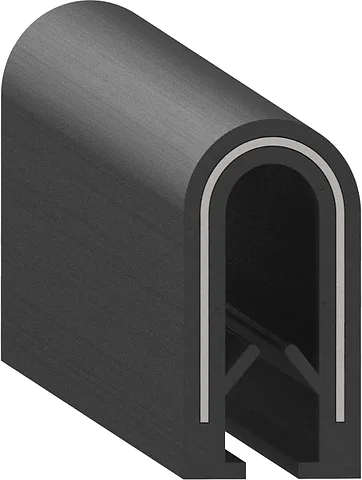

  25. Cross-section drawing of SD-1250
    SD-1250
    SD-1250
    W × H
    0.340 × 0.650 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  26. Cross-section drawing of SD-1250-L
    SD-1250-L
    SD-1250-L
    W × H
    0.340 × 0.650 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  27. Cross-section drawing of SD-12613
    SD-12613
    SD-12613
    W × H
    0.910 × 0.600 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare
  28. Cross-section drawing of SD-1276
    SD-1276
    SD-1276
    W × H
    0.316 × 0.650 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

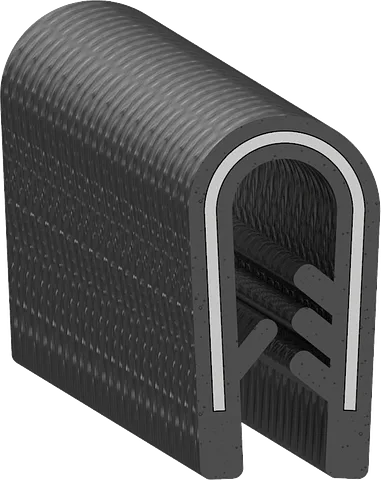

  29. Cross-section drawing of SD-1290
    SD-1290
    SD-1290
    W × H
    0.355 × 0.675 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

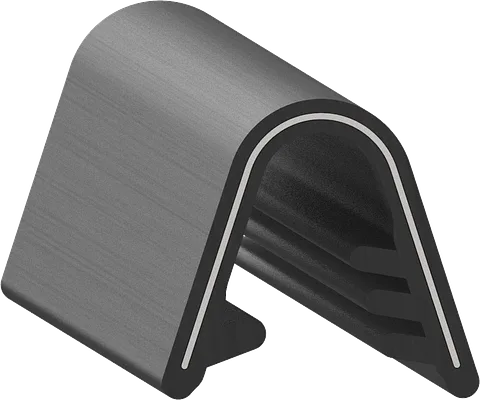

  30. Cross-section drawing of SD-1290-PF
    SD-1290-PF
    SD-1290 PF
    W × H
    0.690 × 0.650 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
