RE-055 copy

RE-055

W × H0.250 × 0.500 in MaterialNeoprene

Other Extrusions Special Compounds Edge Trims

Request a quote for RE-055 → Spec sheet (PDF) Print spec sheet

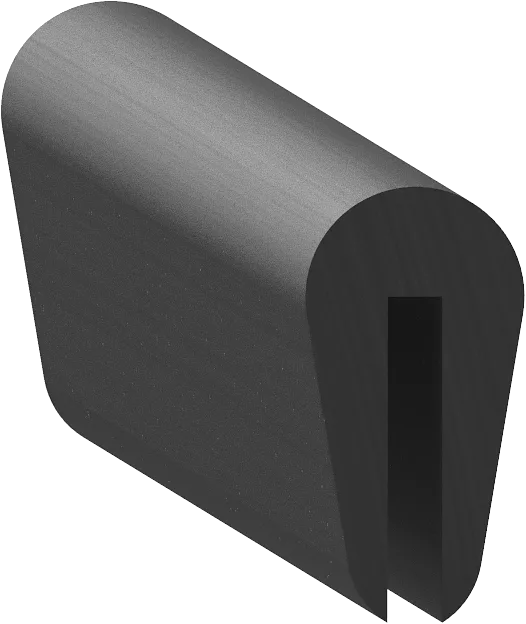

Cross-section drawing of RE-055 — Cross-section — RE-055Not to scale

Specification

As drawn.

Specification for RE-055
Width	0.250" 6.4 mm
Height	0.500" 12.7 mm
Flange	0.063" 1.6 mm
Material	Neoprene
Durometer	70 Shore A
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.
