Seal catalogue · Edge Trims · Part

SD-1250-L copy

SD-1250-L

W × H0.340 × 0.650 in MaterialPVC

Edge Trims

Request a quote for SD-1250-L → Spec sheet (PDF) Print spec sheet

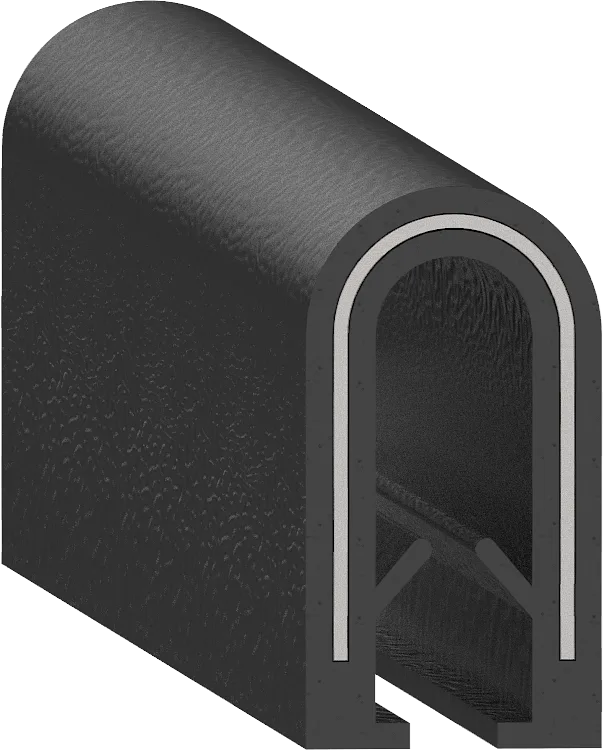

Cross-section drawing of SD-1250-L — Cross-section — SD-1250-LNot to scale

Specification

As drawn.

Specification for SD-1250-L
Width	0.340" 8.6 mm
Height	0.650" 16.5 mm
Flange	0.190" 4.8 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

Need it in volume, or to a change?

Tell an engineer the application.
