Seal catalogue · Edge Trims · Part

RE-105 copy

RE-105

W × H0.313 × 0.500 in MaterialRubber

Edge Trims

Request a quote for RE-105 → Spec sheet (PDF) Print spec sheet

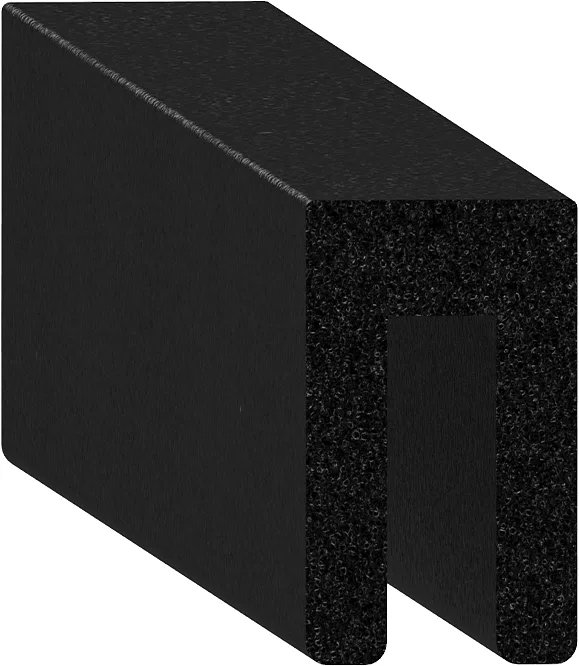

Cross-section drawing of RE-105 — Cross-section — RE-105Not to scale

Specification

As drawn.

Specification for RE-105
Width	0.313" 8.0 mm
Height	0.500" 12.7 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.
