Seal catalogue · Edge Trims · Part

RE-092 copy

RE-092

W × H0.315 × 0.827 in MaterialRubber

Edge Trims

Request a quote for RE-092 → Spec sheet (PDF) Print spec sheet

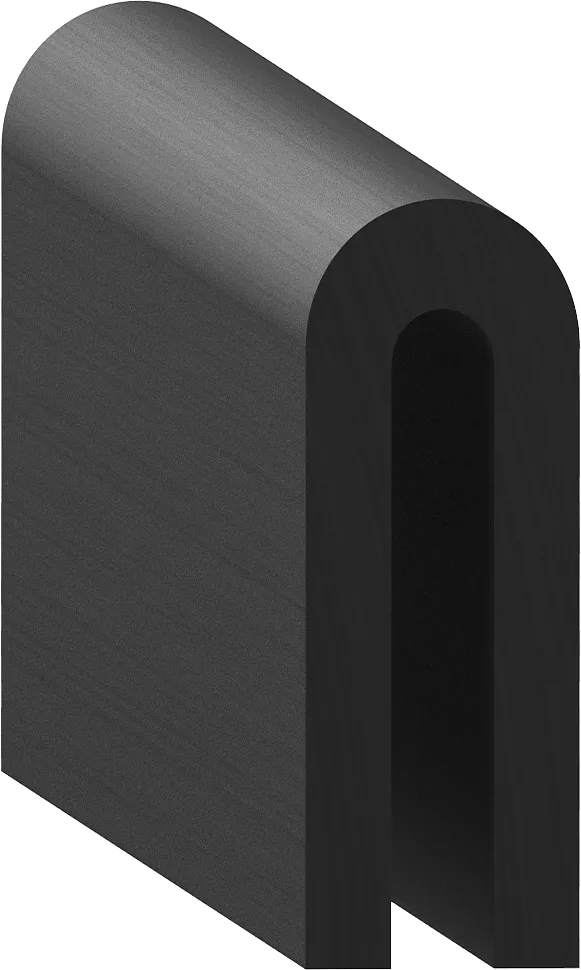

Cross-section drawing of RE-092 — Cross-section — RE-092Not to scale

Specification

As drawn.

Specification for RE-092
Width	0.315" 8.0 mm
Height	0.827" 21.0 mm
Flange	0.118" 3.0 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On

Dimensions in inches to three places, as on the drawing; millimetres computed.
