Seal catalogue · Edge Trims · Part

SD-1290-PF copy

SD-1290 PF

W × H0.690 × 0.650 in MaterialPVC

Edge Trims

Request a quote for SD-1290-PF → Spec sheet (PDF) Print spec sheet

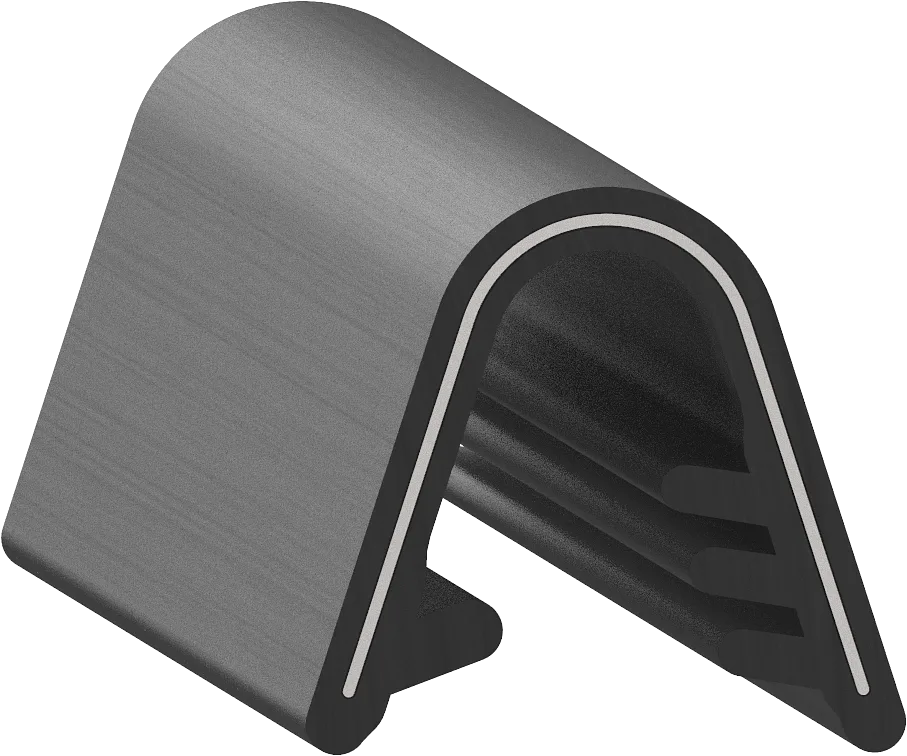

Cross-section drawing of SD-1290-PF — Cross-section — SD-1290-PFNot to scale

Specification

As drawn.

Specification for SD-1290-PF
Width	0.690" 17.5 mm
Height	0.650" 16.5 mm
Flange	0.250" 6.4 mm
Material	PVC
Durometer	63 Shore A
Colour	Black
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1290 0.355 × 0.675 in · PVC SD-1291 0.760 × 0.610 in · PVC SD-1296 0.411 × 0.650 in · PVC
