SD-1296

W × H0.411 × 0.650 in MaterialPVC

Edge Trims

Request a quote for SD-1296 → Spec sheet (PDF) Print spec sheet

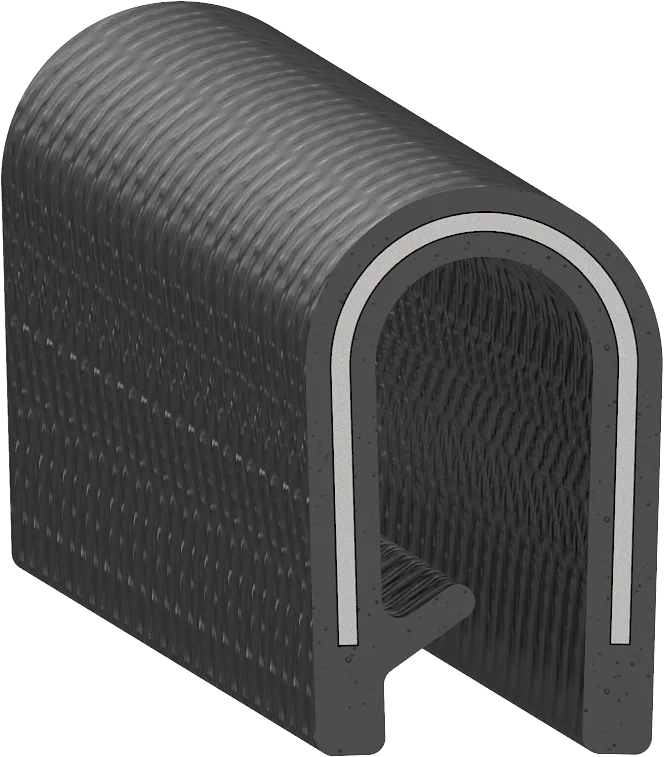

Cross-section drawing of SD-1296 — Cross-section — SD-1296Not to scale

Specification

As drawn.

Specification for SD-1296
Width	0.411" 10.4 mm
Height	0.650" 16.5 mm
Flange	0.250" 6.4 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Herringbone
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

10 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1160 0.250 × 0.450 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1290 0.355 × 0.675 in · PVC SD-1290-PF 0.690 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1425 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1435 0.490 × 0.725 in · PVC SD-1475 0.310 × 0.900 in · PVC
