SD-1298

W × H0.376 × 0.662 in MaterialPVC

Edge Trims

Request a quote for SD-1298 → Spec sheet (PDF) Print spec sheet

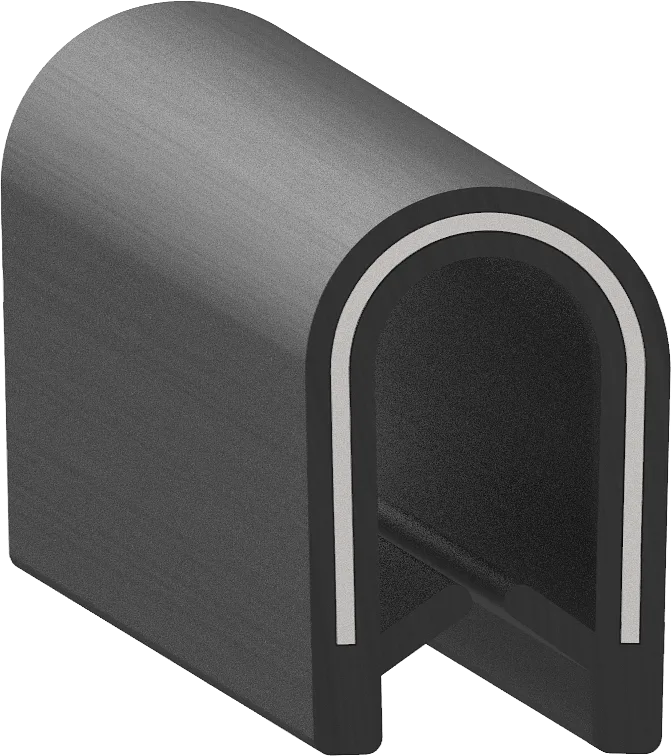

Cross-section drawing of SD-1298 — Cross-section — SD-1298Not to scale

Specification

As drawn.

Specification for SD-1298
Width	0.376" 9.6 mm
Height	0.662" 16.8 mm
Flange	0.240" 6.1 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

13 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1160 0.250 × 0.450 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC SD-1250 0.340 × 0.650 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1296 0.411 × 0.650 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1425 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1435 0.490 × 0.725 in · PVC SD-1475 0.310 × 0.900 in · PVC
