SD-1185

W × H0.350 × 0.530 in MaterialPVC

Edge Trims

Request a quote for SD-1185 → Spec sheet (PDF) Print spec sheet

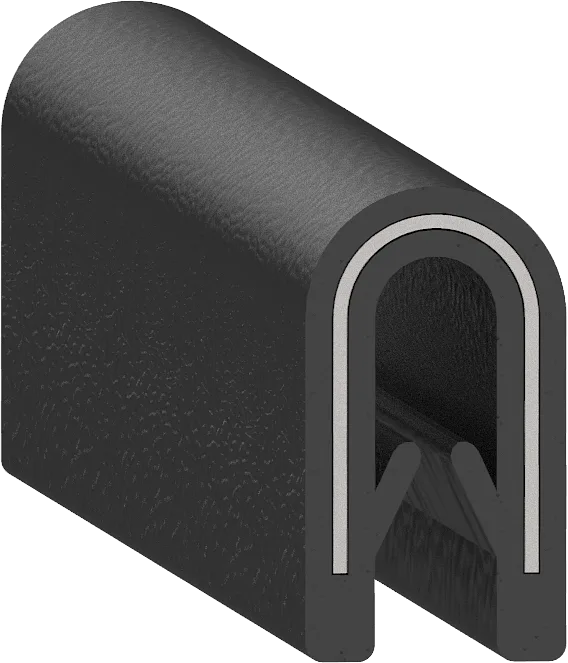

Cross-section drawing of SD-1185 — Cross-section — SD-1185Not to scale

Specification

As drawn.

Specification for SD-1185
Width	0.350" 8.9 mm
Height	0.530" 13.5 mm
Flange	0.190" 4.8 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1in Stamped Steel
Industries	Agriculture Equipment

Coil lengths: 250 ft · 500 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

14 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1130 0.260 × 0.450 in · PVC SD-1130-Herringbone 0.260 × 0.450 in · PVC SD-1160 0.250 × 0.450 in · PVC SD-1160-W 0.250 × 0.450 in · PVC SD-1185-W 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1205-AL 0.350 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC SD-1250 0.340 × 0.650 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1475 0.310 × 0.900 in · PVC
