SD-1250

W × H0.340 × 0.650 in MaterialPVC

Edge Trims

Request a quote for SD-1250 → Spec sheet (PDF) Print spec sheet

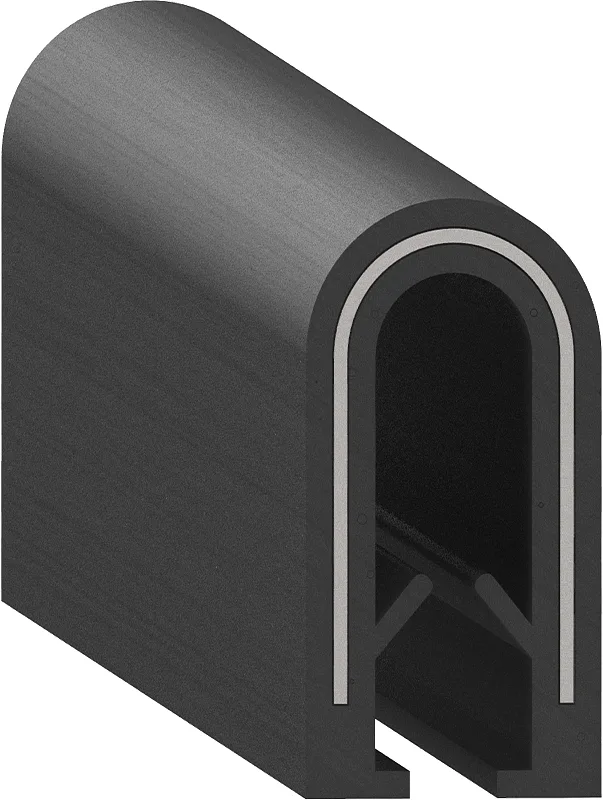

Cross-section drawing of SD-1250 — Cross-section — SD-1250Not to scale

Specification

As drawn.

Specification for SD-1250
Width	0.340" 8.6 mm
Height	0.650" 16.5 mm
Flange	0.190" 4.8 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

12 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1130 0.260 × 0.450 in · PVC SD-1130-Herringbone 0.260 × 0.450 in · PVC SD-1160 0.250 × 0.450 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1205-AL 0.350 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-136 0.515 × 0.625 in · Rubber SD-1400 0.340 × 0.750 in · PVC
