SD-1130 copy

SD-1130

W × H0.260 × 0.450 in MaterialPVC

Edge Trims

Request a quote for SD-1130 → Spec sheet (PDF) Print spec sheet

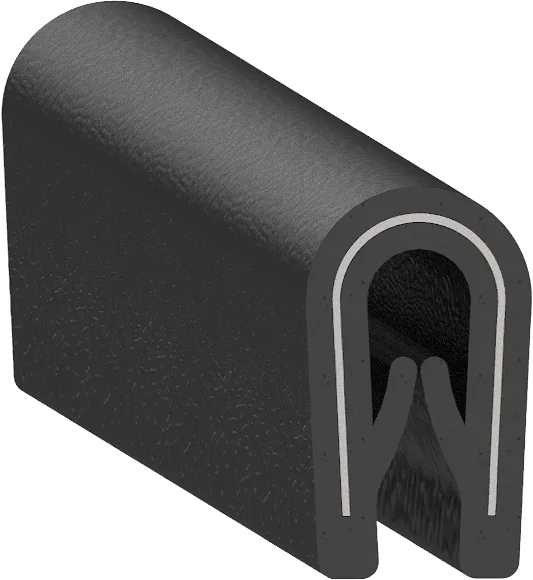

Cross-section drawing of SD-1130 — Cross-section — SD-1130Not to scale

Specification

As drawn.

Specification for SD-1130
Width	0.260" 6.6 mm
Height	0.450" 11.4 mm
Flange	0.120" 3.0 mm
Material	PVC
Durometer	78 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	.75in Stamped Steel
Industries	Transportation

Dimensions in inches to three places, as on the drawing; millimetres computed.

10 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1130-Herringbone 0.260 × 0.450 in · PVC SD-1130-W 0.260 × 0.450 in · PVC SD-1160 0.250 × 0.450 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1205-AL 0.350 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC SD-1250 0.340 × 0.650 in · PVC SD-1276 0.316 × 0.650 in · PVC
