SD-1130-W

W × H0.260 × 0.450 in MaterialPVC

Edge Trims

Request a quote for SD-1130-W → Spec sheet (PDF) Print spec sheet

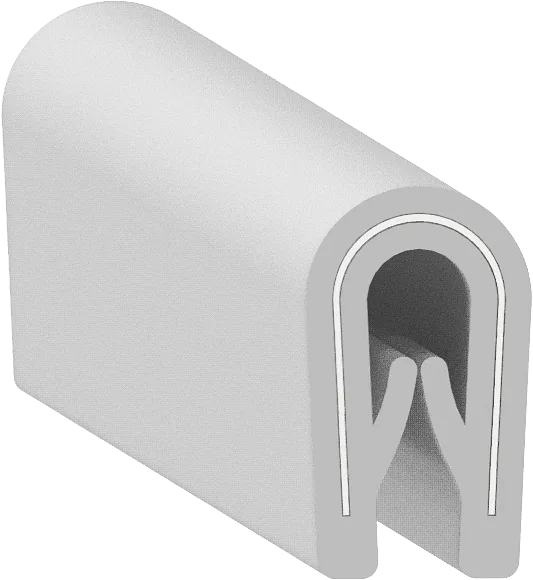

Cross-section drawing of SD-1130-W — Cross-section — SD-1130-WNot to scale

Specification

As drawn.

Specification for SD-1130-W
Width	0.260" 6.6 mm
Height	0.450" 11.4 mm
Flange	0.120" 3.0 mm
Material	PVC
Durometer	78 Shore A
Colour	White
Mount	Push On
Core	.75in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1130 0.260 × 0.450 in · PVC SD-1130-Herringbone 0.260 × 0.450 in · PVC SD-1160-W 0.250 × 0.450 in · PVC
