SD-1205

W × H0.330 × 0.550 in MaterialPVC

Edge Trims

Request a quote for SD-1205 → Spec sheet (PDF) Print spec sheet

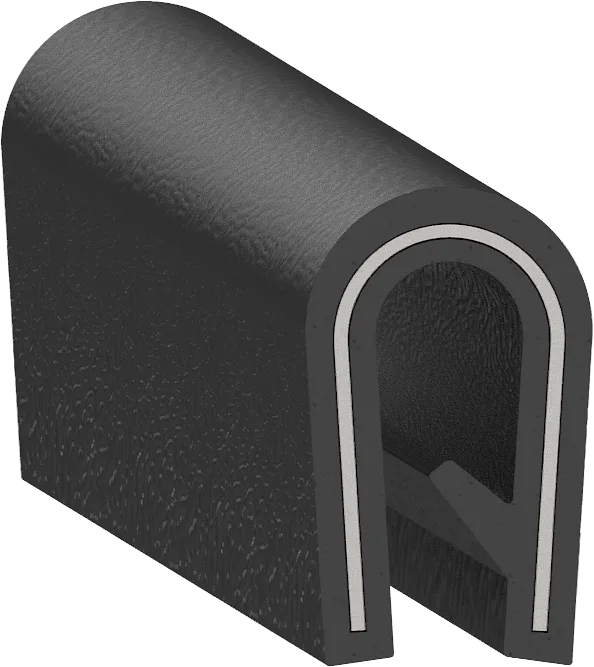

Cross-section drawing of SD-1205 — Cross-section — SD-1205Not to scale

Specification

As drawn.

Specification for SD-1205
Width	0.330" 8.4 mm
Height	0.550" 14.0 mm
Flange	0.170" 4.3 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	1in Stamped Steel
Industries	Agriculture Equipment

Coil lengths: 250 ft · 500 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

14 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5372-G 0.512 × 0.750 in · Silicone ET-054 0.315 × 0.551 in · PVC SD-1130 0.260 × 0.450 in · PVC SD-1130-Herringbone 0.260 × 0.450 in · PVC SD-1160 0.250 × 0.450 in · PVC SD-1160-W 0.250 × 0.450 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1185-W 0.350 × 0.530 in · PVC SD-1205-AL 0.350 × 0.550 in · PVC SD-1250 0.340 × 0.650 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1475 0.310 × 0.900 in · PVC
