ED-5372-G copy

ED-5372-G

W × H0.512 × 0.750 in MaterialSilicone

Special Compounds Edge Trims

Request a quote for ED-5372-G → Spec sheet (PDF) Print spec sheet

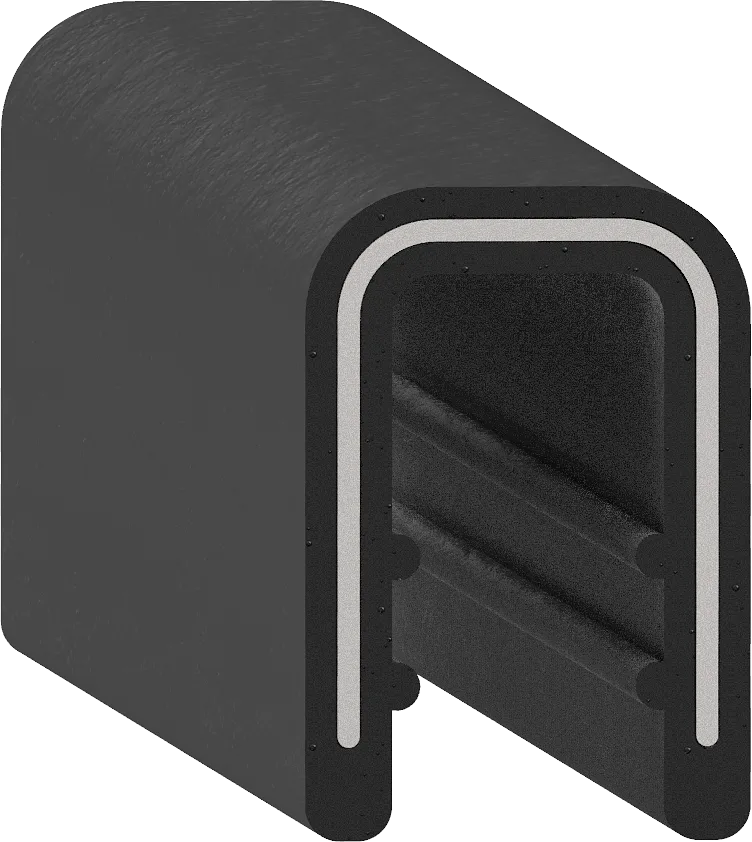

Cross-section drawing of ED-5372-G — Cross-section — ED-5372-GNot to scale

Specification

As drawn.

Specification for ED-5372-G
Width	0.512" 13.0 mm
Height	0.750" 19.0 mm
Flange	0.312" 7.9 mm
Material	Silicone
Type	Dense
Durometer	60 Shore A
Colour	Black
Mount	Push On
Core	1.43in Wire

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1205 0.330 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC SD-1276 0.316 × 0.650 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1402 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC
