Seal catalogue · Edge Trims · Part

SD-1402 copy

SD-1402

W × H0.500 × 0.700 in MaterialPVC

Edge Trims

Request a quote for SD-1402 → Spec sheet (PDF) Print spec sheet

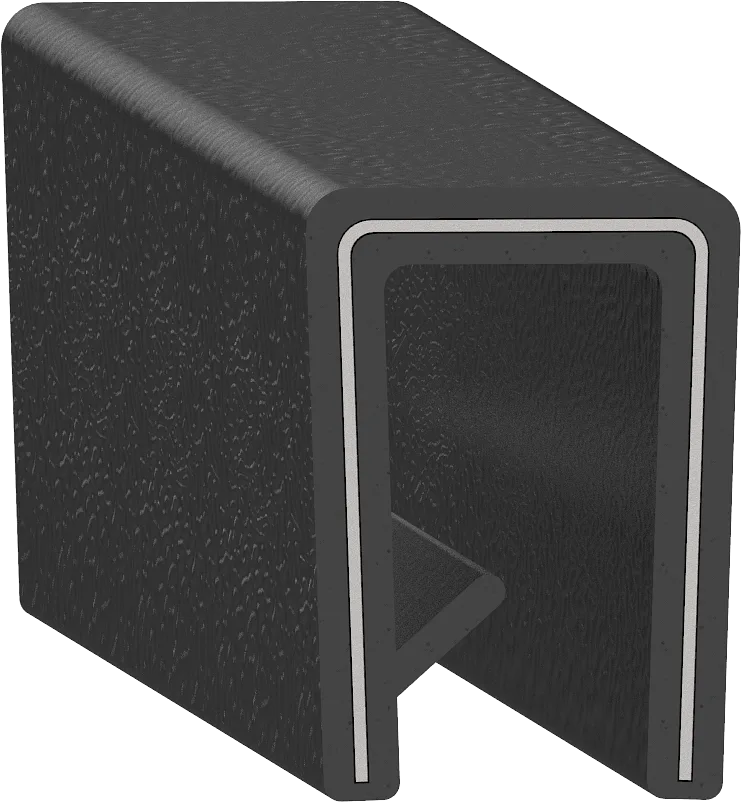

Cross-section drawing of SD-1402 — Cross-section — SD-1402Not to scale

Specification

As drawn.

Specification for SD-1402
Width	0.500" 12.7 mm
Height	0.700" 17.8 mm
Flange	0.320" 8.1 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1.4in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

9 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-1185 0.350 × 0.525 in · PVC BD-1435 0.350 × 0.660 in · PVC BD-1550 0.710 × 0.620 in · PVC ED-5372-G 0.512 × 0.750 in · Silicone SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1435 0.490 × 0.725 in · PVC SD-1450 0.671 × 0.580 in · PVC SD-1875 0.740 × 1.000 in · PVC SD-1875-W 0.740 × 1.000 in · PVC
