BD-1185

W × H0.350 × 0.525 in MaterialPVC

Edge Trims

Request a quote for BD-1185 → Spec sheet (PDF) Print spec sheet

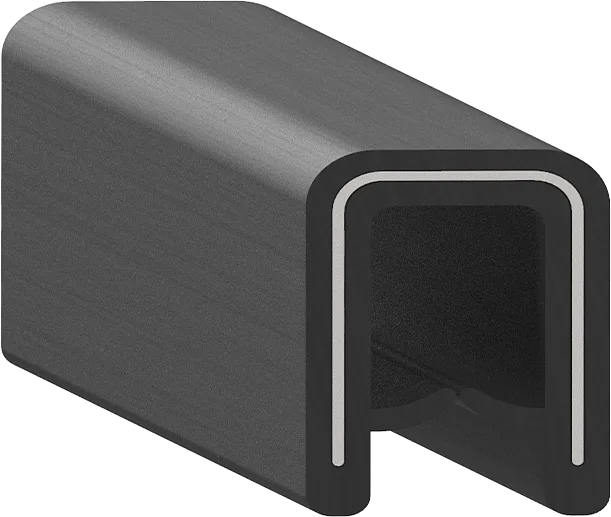

Cross-section drawing of BD-1185 — Cross-section — BD-1185Not to scale

Specification

As drawn.

Specification for BD-1185
Width	0.350" 8.9 mm
Height	0.525" 13.3 mm
Flange	0.200" 5.1 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-1435 0.350 × 0.660 in · PVC BD-1550 0.710 × 0.620 in · PVC SD-1402 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1435 0.490 × 0.725 in · PVC SD-1450 0.671 × 0.580 in · PVC SD-1875 0.740 × 1.000 in · PVC SD-1875-W 0.740 × 1.000 in · PVC
