BD-1550

W × H0.710 × 0.620 in MaterialPVC

Edge Trims

Request a quote for BD-1550 → Spec sheet (PDF) Print spec sheet

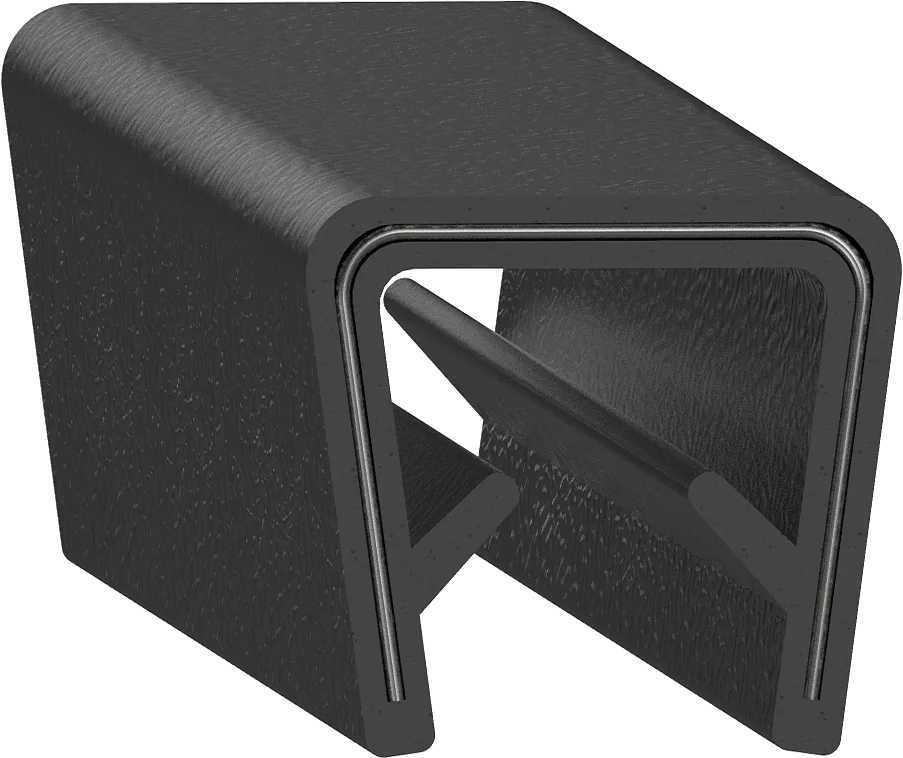

Cross-section drawing of BD-1550 — Cross-section — BD-1550Not to scale

Specification

As drawn.

Specification for BD-1550
Width	0.710" 18.0 mm
Height	0.620" 15.7 mm
Flange	0.535" 13.6 mm
Material	PVC
Durometer	78 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	1.525in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-1185 0.350 × 0.525 in · PVC BD-1435 0.350 × 0.660 in · PVC SD-1402 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1435 0.490 × 0.725 in · PVC SD-1450 0.671 × 0.580 in · PVC SD-1875 0.740 × 1.000 in · PVC SD-1875-W 0.740 × 1.000 in · PVC
