SD-1435

W × H0.490 × 0.725 in MaterialPVC

Edge Trims

Request a quote for SD-1435 → Spec sheet (PDF) Print spec sheet

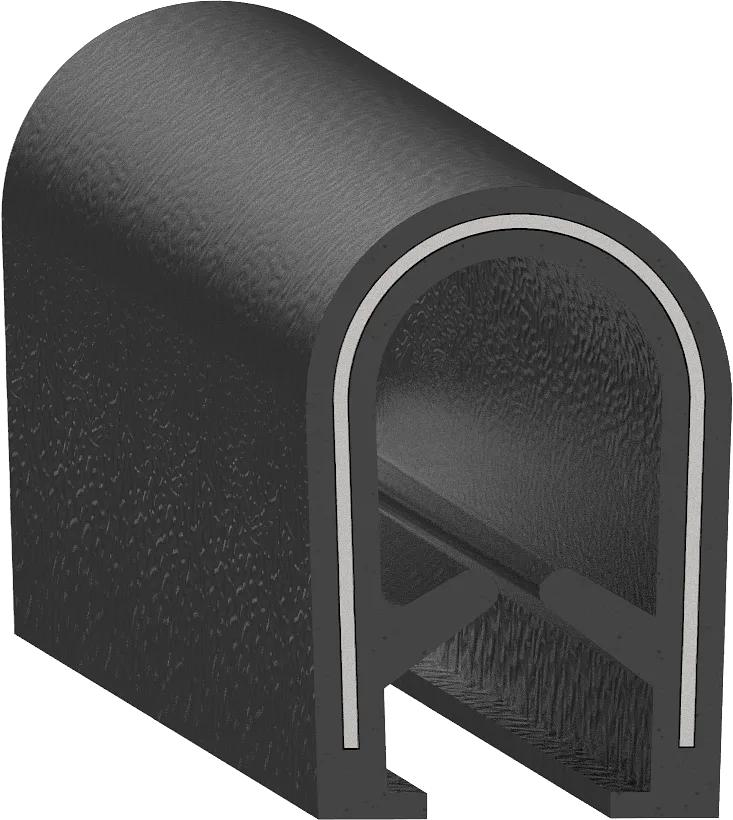

Cross-section drawing of SD-1435 — Cross-section — SD-1435Not to scale

Specification

As drawn.

Specification for SD-1435
Width	0.490" 12.4 mm
Height	0.725" 18.4 mm
Flange	0.330" 8.4 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	1.4in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-1185 0.350 × 0.525 in · PVC BD-1550 0.710 × 0.620 in · PVC SD-1296 0.411 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-1402 0.500 × 0.700 in · PVC SD-1430-BOYD 0.500 × 0.650 in · PVC SD-1450 0.671 × 0.580 in · PVC SD-1475 0.310 × 0.900 in · PVC
