SD-1475

W × H0.310 × 0.900 in MaterialPVC

Edge Trims

Request a quote for SD-1475 → Spec sheet (PDF) Print spec sheet

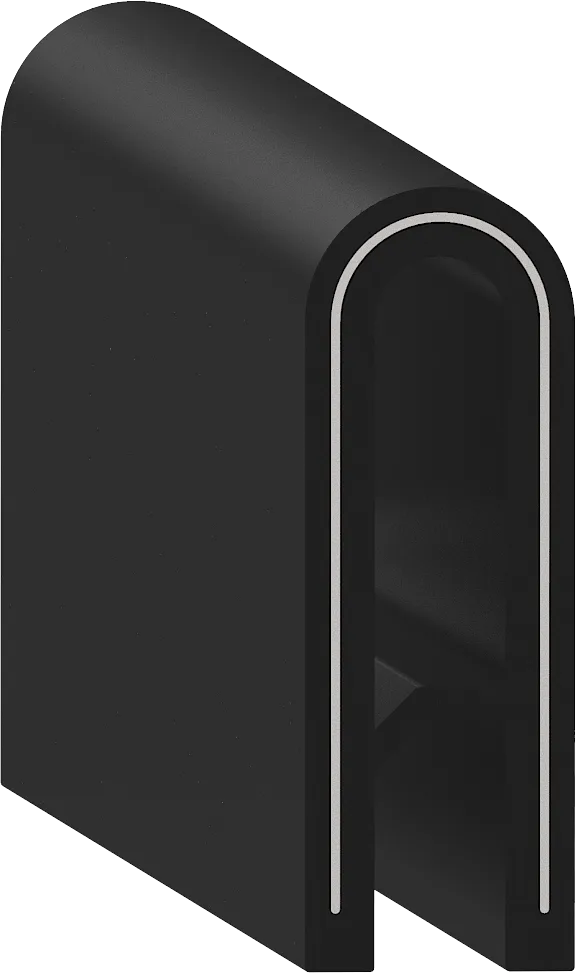

Cross-section drawing of SD-1475 — Cross-section — SD-1475Not to scale

Specification

As drawn.

Specification for SD-1475
Width	0.310" 7.9 mm
Height	0.900" 22.9 mm
Flange	0.150" 3.8 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1.4in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

7 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1296 0.411 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC SD-1400 0.340 × 0.750 in · PVC SD-1435 0.490 × 0.725 in · PVC
