Seal catalogue · Edge Trims · Part

SD-1875-W copy

SD-1875-W

W × H0.740 × 1.000 in MaterialPVC

Edge Trims

Request a quote for SD-1875-W → Spec sheet (PDF) Print spec sheet

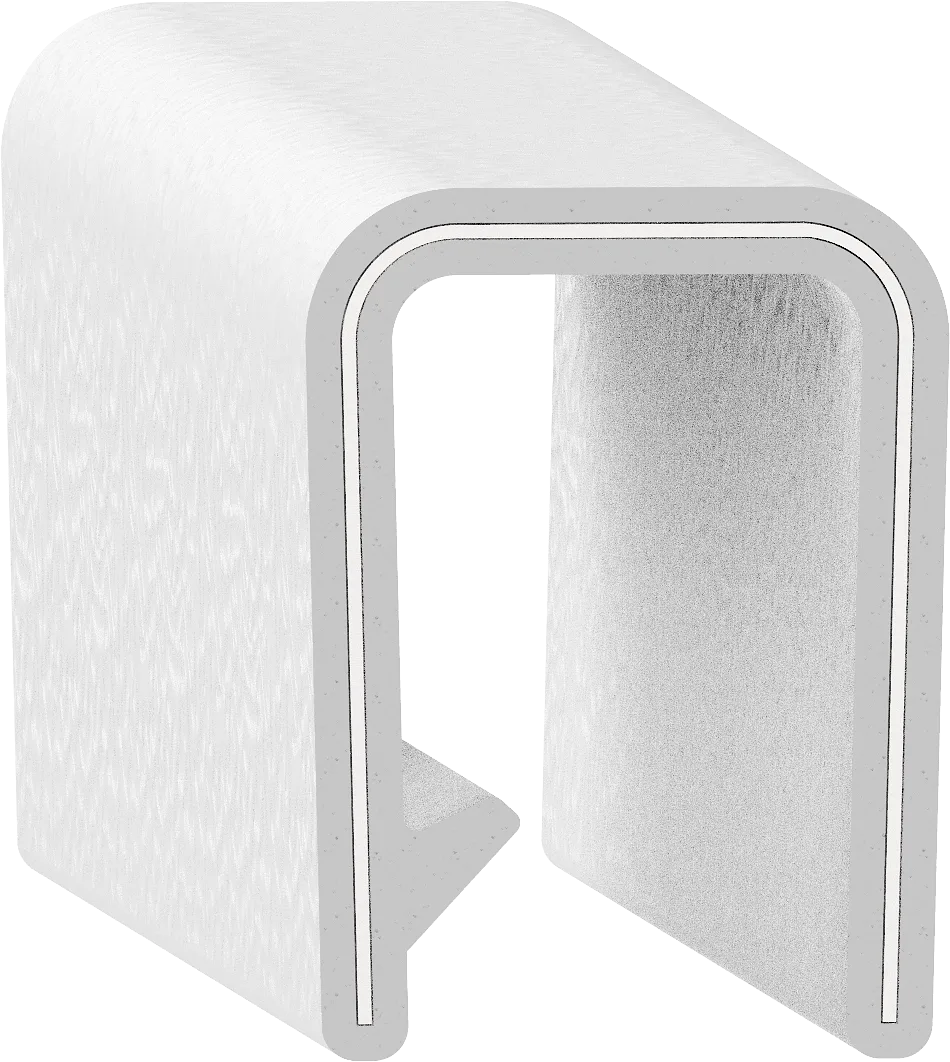

Cross-section drawing of SD-1875-W — Cross-section — SD-1875-WNot to scale

Specification

As drawn.

Specification for SD-1875-W
Width	0.740" 18.8 mm
Height	1.000" 25.4 mm
Flange	0.540" 13.7 mm
Material	PVC
Durometer	78 Shore A
Colour	White
Texture	Leather Grain
Mount	Push On
Core	2in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BD-1185 0.350 × 0.525 in · PVC BD-1435 0.350 × 0.660 in · PVC BD-1550 0.710 × 0.620 in · PVC SD-1402 0.500 × 0.700 in · PVC
