SD-1185-W

W × H0.350 × 0.530 in MaterialPVC

Edge Trims

Request a quote for SD-1185-W → Spec sheet (PDF) Print spec sheet

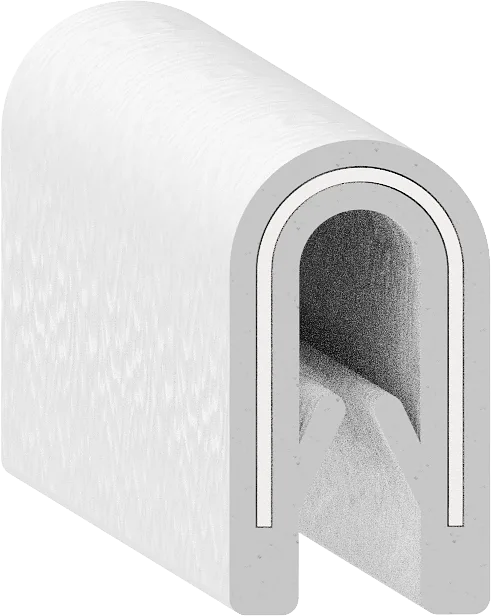

Cross-section drawing of SD-1185-W — Cross-section — SD-1185-WNot to scale

Specification

As drawn.

Specification for SD-1185-W
Width	0.350" 8.9 mm
Height	0.530" 13.5 mm
Flange	0.190" 4.8 mm
Material	PVC
Durometer	80 Shore A
Colour	White
Texture	Leather Grain
Mount	Push On
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1160-W 0.250 × 0.450 in · PVC SD-1185 0.350 × 0.530 in · PVC SD-1205 0.330 × 0.550 in · PVC SD-1205-NE-Seat 0.321 × 0.535 in · PVC
