SD-1425

W × H0.500 × 0.700 in MaterialPVC

Edge Trims

Request a quote for SD-1425 → Spec sheet (PDF) Print spec sheet

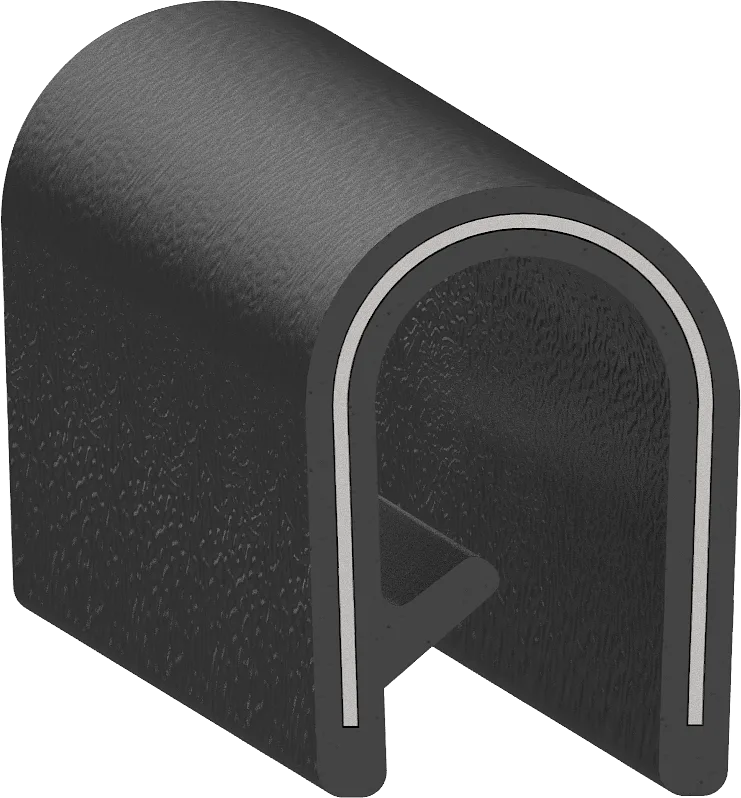

Cross-section drawing of SD-1425 — Cross-section — SD-1425Not to scale

Specification

As drawn.

Specification for SD-1425
Width	0.500" 12.7 mm
Height	0.700" 17.8 mm
Flange	0.340" 8.6 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Leather Grain
Mount	Push On
Core	1.4in Stamped Steel

Coil lengths: 250 ft · 500 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1296 0.411 × 0.650 in · PVC SD-1298 0.376 × 0.662 in · PVC
