SD-1290

W × H0.355 × 0.675 in MaterialPVC

Edge Trims

Request a quote for SD-1290 → Spec sheet (PDF) Print spec sheet

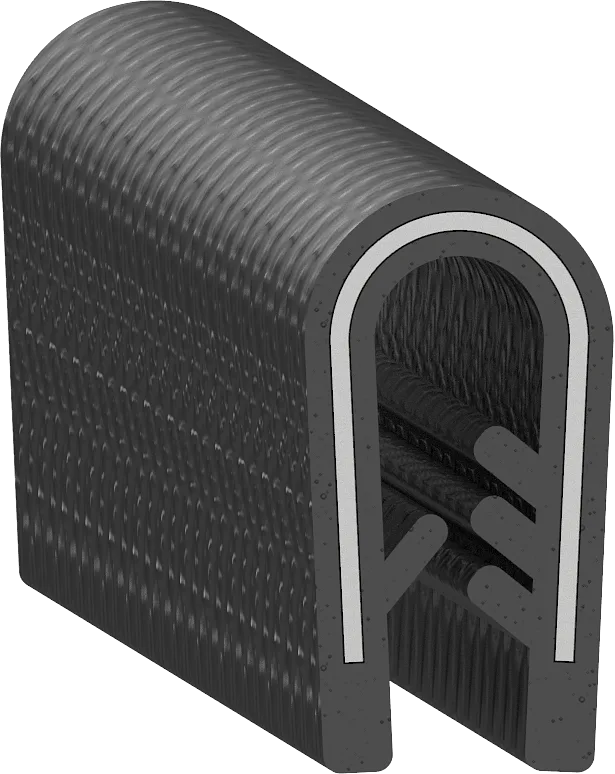

Cross-section drawing of SD-1290 — Cross-section — SD-1290Not to scale

Specification

As drawn.

Specification for SD-1290
Width	0.355" 9.0 mm
Height	0.675" 17.1 mm
Flange	0.195" 5.0 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Texture	Herringbone
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ET-054 0.315 × 0.551 in · PVC SD-1290-PF 0.690 × 0.650 in · PVC SD-1291 0.760 × 0.610 in · PVC SD-1296 0.411 × 0.650 in · PVC
