SD-1291

W × H0.760 × 0.610 in MaterialPVC

Edge Trims

Request a quote for SD-1291 → Spec sheet (PDF) Print spec sheet

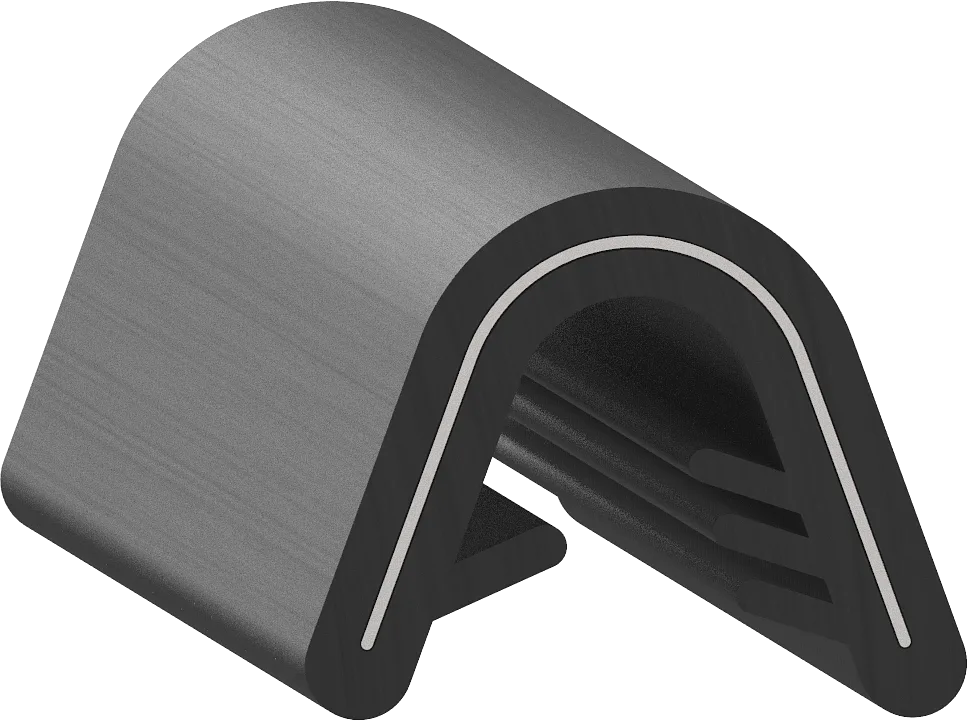

Cross-section drawing of SD-1291 — Cross-section — SD-1291Not to scale

Specification

As drawn.

Specification for SD-1291
Width	0.760" 19.3 mm
Height	0.610" 15.5 mm
Flange	0.263" 6.7 mm
Material	PVC
Durometer	63 Shore A
Colour	Black
Mount	Push On
Core	1.170in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-1290 0.355 × 0.675 in · PVC SD-1290-PF 0.690 × 0.650 in · PVC
