Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

23
profiles matching · Download CSV
23 profiles
Cards Table
Sort
Part Width Height Material Mount Style
White Remove filter Reset all

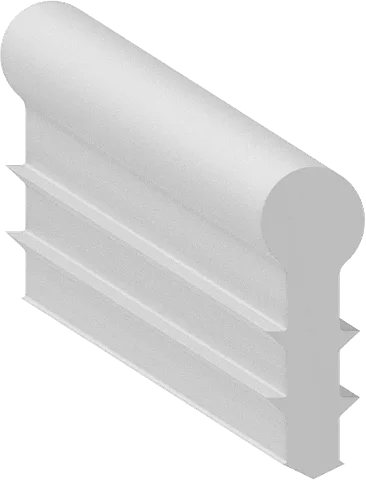

  1. Cross-section drawing of DD-022-W
    DD-022-W
    DD-022-W
    W × H
    0.138 × 0.400 in
    Material
    PVC
    Style
    Other Extrusion
    Quote Compare

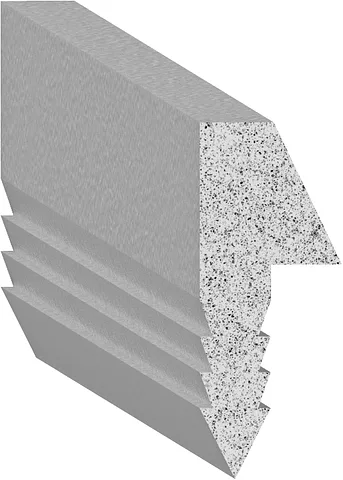

  2. Cross-section drawing of DD-032
    DD-032
    DD-032
    W × H
    0.250 × 0.625 in
    Material
    PVC
    Style
    Other Extrusion
    Quote Compare
  3. Cross-section drawing of ED-17041-W
    ED-17041-W
    ED-17041-W
    W × H
    2.400 × 1.800 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

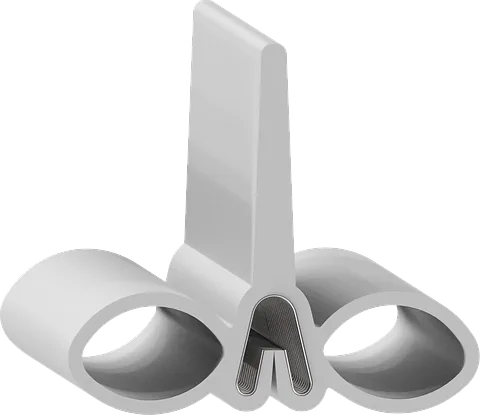

  4. Cross-section drawing of ED-50465-W
    ED-50465-W
    ED-50465-W
    W × H
    2.100 × 1.750 in
    Material
    Rubber
    Style
    Slide-Out Seal
    Quote Compare

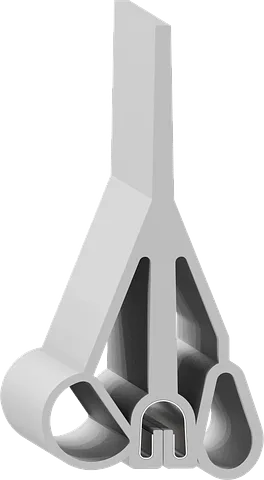

  5. Cross-section drawing of ED-50480-W
    ED-50480-W
    ED-50480-W
    W × H
    1.900 × 3.700 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

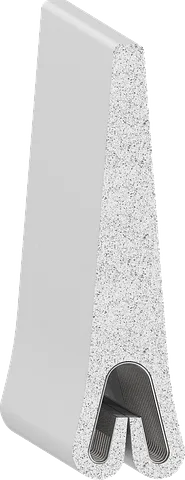

  6. Cross-section drawing of ED-5349-W
    ED-5349-W
    ED-5349-W
    W × H
    0.545 × 2.100 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare

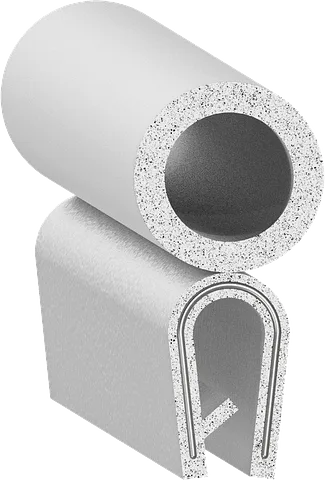

  7. Cross-section drawing of SD-110-T-W
    SD-110-T-W
    SD-110-T-W
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  8. Cross-section drawing of SD-1130-W
    SD-1130-W
    SD-1130-W
    W × H
    0.260 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  9. Cross-section drawing of SD-1160-W
    SD-1160-W
    SD-1160-W
    W × H
    0.250 × 0.450 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare
  10. Cross-section drawing of SD-1185-W
    SD-1185-W
    SD-1185-W
    W × H
    0.350 × 0.530 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

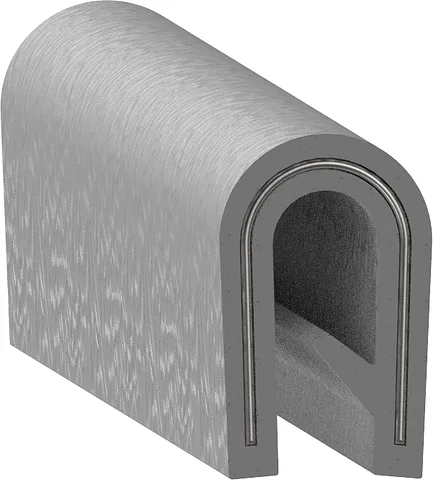

  11. Cross-section drawing of SD-1205-WT-150-Opening
    SD-1205-WT-150-Opening
    SD-1205-WT .150 Opening
    W × H
    0.340 × 0.550 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

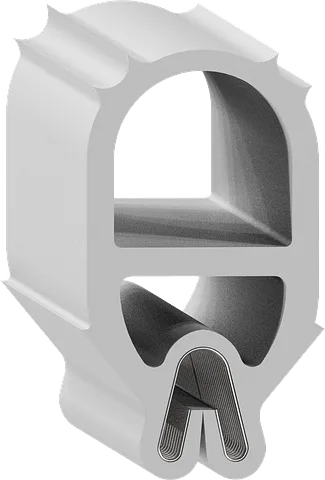

  12. Cross-section drawing of SD-170-W
    SD-170-W
    SD-170-W
    W × H
    1.000 × 1.850 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

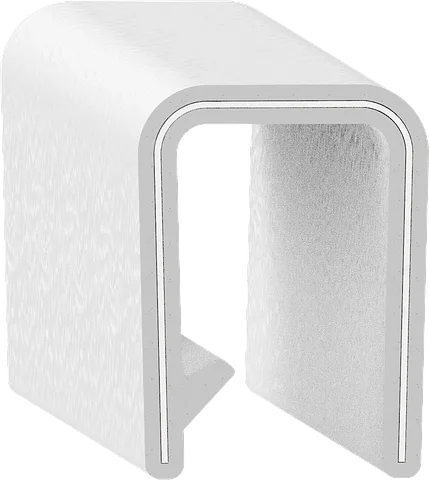

  13. Cross-section drawing of SD-1875-W
    SD-1875-W
    SD-1875-W
    W × H
    0.740 × 1.000 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

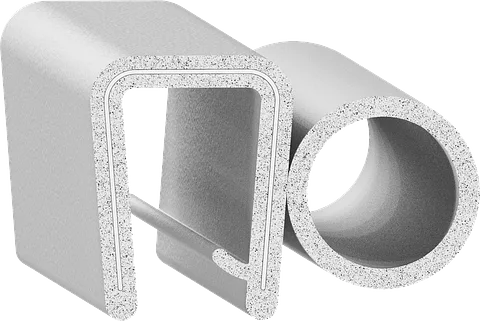

  14. Cross-section drawing of SD-1875-W-750-BULB
    SD-1875-W-750-BULB
    SD-1875 w/ 3/4in Bulb White
    W × H
    1.540 × 1.027 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

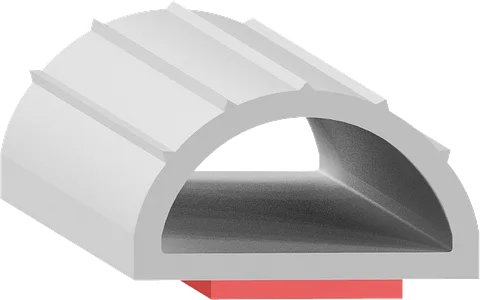

  15. Cross-section drawing of SD-244-T-W
    SD-244-T-W
    SD-244-T-W
    W × H
    0.900 × 0.515 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  16. Cross-section drawing of SD-269-T-W
    SD-269-T-W
    SD-269-T-W
    W × H
    2.200 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  17. Cross-section drawing of SD-308
    SD-308
    SD-308
    W × H
    0.460 × 0.100 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare

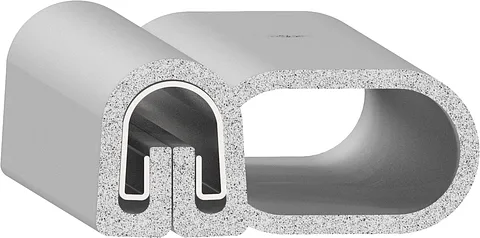

  18. Cross-section drawing of SD-504-W
    SD-504-W
    SD-504-W
    W × H
    1.400 × 0.650 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

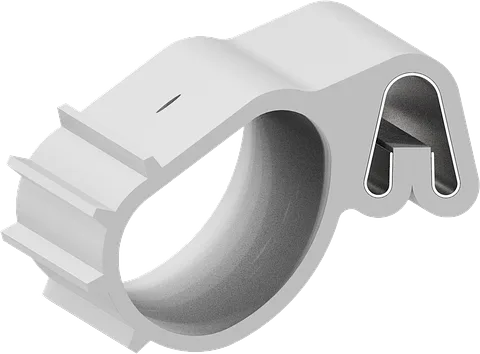

  19. Cross-section drawing of SD-600-W
    SD-600-W
    SD-600-W
    W × H
    1.574 × 1.200 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

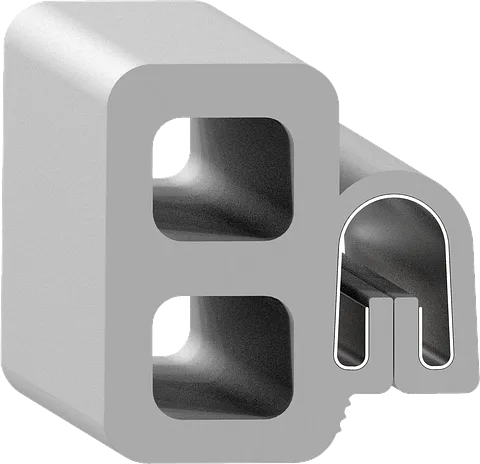

  20. Cross-section drawing of SD-750-W
    SD-750-W
    SD-750-W
    W × H
    1.256 × 1.340 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  21. Cross-section drawing of TH-500-W
    TH-500-W
    TH-500-W
    W × H
    5.000 × 0.200 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare
  22. Cross-section drawing of TH-535-W
    TH-535-W
    TH-535-W
    W × H
    3.950 × 0.200 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare

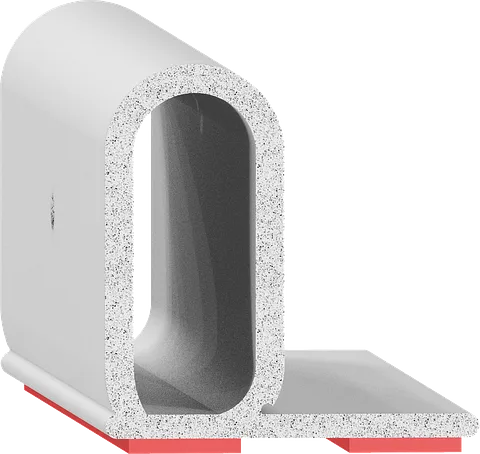

  23. Cross-section drawing of TR-504-T-WT-2-X-Tape
    TR-504-T-WT-2-X-Tape
    TR-504-T-WT 2 X Tape
    W × H
    1.200 × 1.200 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
