DD-032 copy

DD-032

W × H0.250 × 0.625 in MaterialPVC

Other Extrusions

Request a quote for DD-032 → Spec sheet (PDF) Print spec sheet

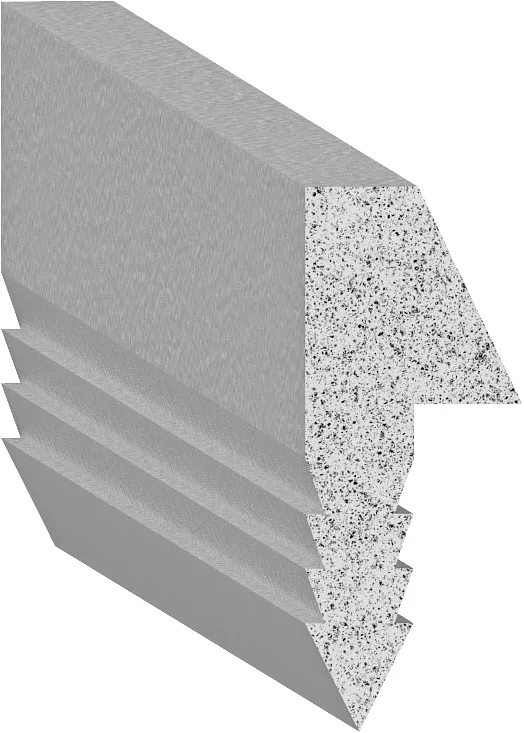

Cross-section drawing of DD-032 — Cross-section — DD-032Not to scale

Specification

As drawn.

Specification for DD-032
Width	0.250" 6.4 mm
Height	0.625" 15.9 mm
Material	PVC
Durometer	78 Shore A
Colour	White
Mount	Pedestal

Dimensions in inches to three places, as on the drawing; millimetres computed.
