Seal catalogue · Push On Rubber Seals · Part

ED-5349-W copy

ED-5349-W

W × H0.545 × 2.100 in MaterialRubber
Push On Rubber Seals
Request a quote for ED-5349-W → Spec sheet (PDF) Print spec sheet

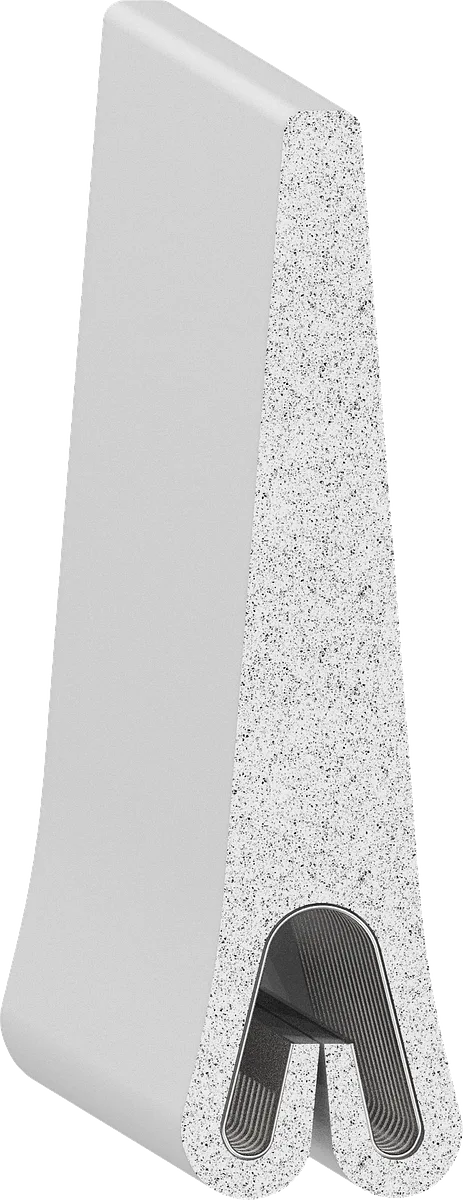

Cross-section drawing of ED-5349-W
Cross-section — ED-5349-WNot to scale
Specification

As drawn.

Specification for ED-5349-W
Width 0.545" 13.8 mm
Height 2.100" 53.3 mm
Flange 0.125" 3.2 mm
Material Rubber
Type Sponge
Durometer 2A4 (sponge grade)
Colour White
Mount Push On
Core SD-487 Spring Steel
ShapeFlap Seal
Flap1.500" 38.1 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5200 0.538 × 2.563 in · Rubber ED-5250 0.538 × 3.000 in · Rubber ED-5349 0.545 × 2.100 in · Rubber ED-5365 0.450 × 1.300 in · Rubber
