ED-5200

W × H0.538 × 2.563 in MaterialRubber

Request a quote for ED-5200 → Spec sheet (PDF) Print spec sheet

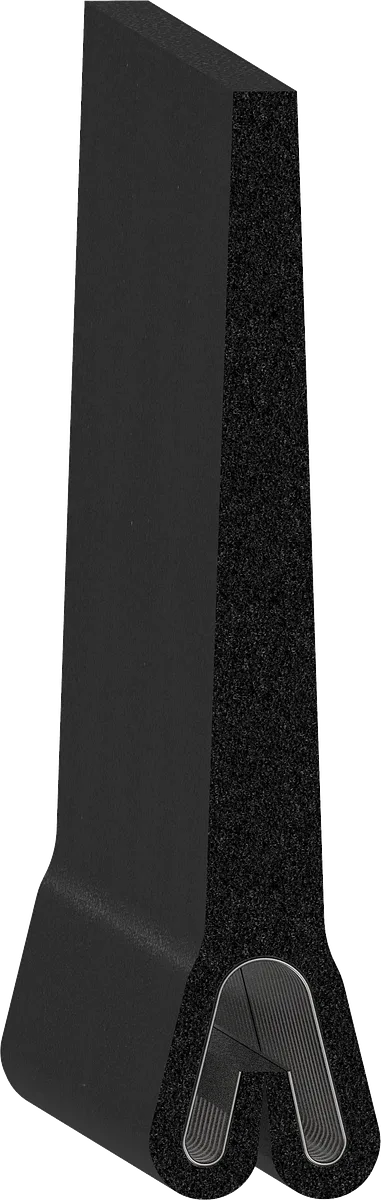

Cross-section drawing of ED-5200 — Cross-section — ED-5200Not to scale

Specification

As drawn.

Specification for ED-5200
Width	0.538" 13.7 mm
Height	2.563" 65.1 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Shape	Flap Seal
Flap	1.950" 49.5 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5250 0.538 × 3.000 in · Rubber ED-5349 0.545 × 2.100 in · Rubber ED-5349-W 0.545 × 2.100 in · Rubber ED-5365 0.450 × 1.300 in · Rubber
