ED-5365

W × H0.450 × 1.300 in MaterialRubber

Request a quote for ED-5365 → Spec sheet (PDF) Print spec sheet

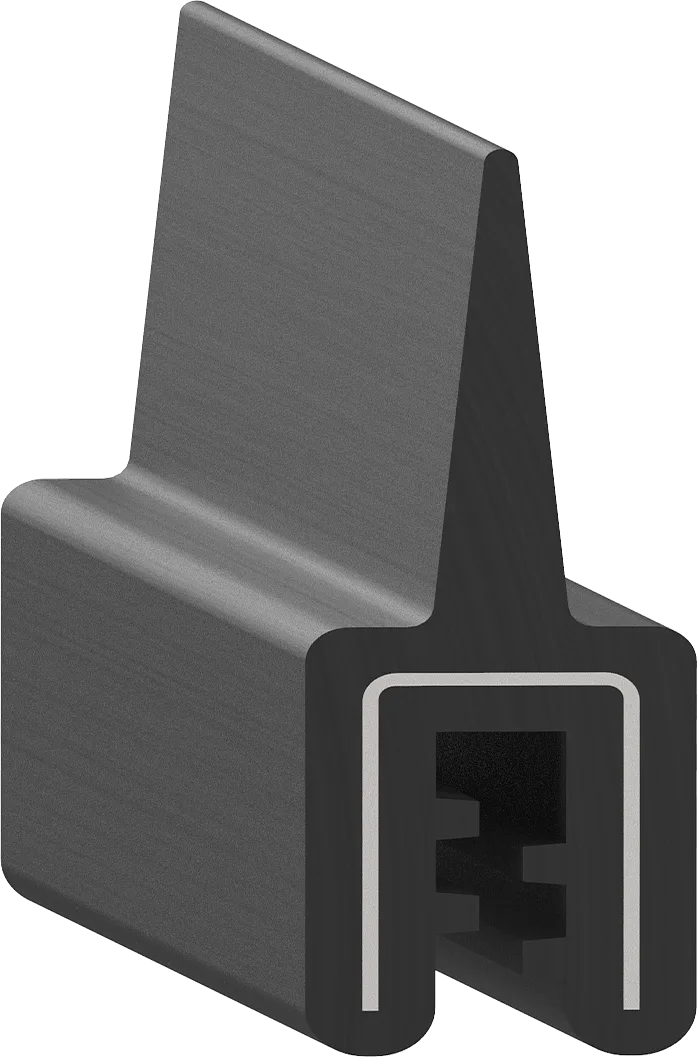

Cross-section drawing of ED-5365 — Cross-section — ED-5365Not to scale

Specification

As drawn.

Specification for ED-5365
Width	0.450" 11.4 mm
Height	1.300" 33.0 mm
Flange	0.150" 3.8 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On
Core	1in Center Web Steel
Industries	Metal and Fiberglass Fabrication
Shape	Flap Seal
Flap	0.725" 18.4 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5200 0.538 × 2.563 in · Rubber ED-5250 0.538 × 3.000 in · Rubber ED-5349 0.545 × 2.100 in · Rubber ED-5349-W 0.545 × 2.100 in · Rubber
