Seal catalogue · Tape Seals · Part

SD-244-T-W copy

SD-244-T-W

W × H0.900 × 0.515 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-244-T-W → Spec sheet (PDF) Print spec sheet

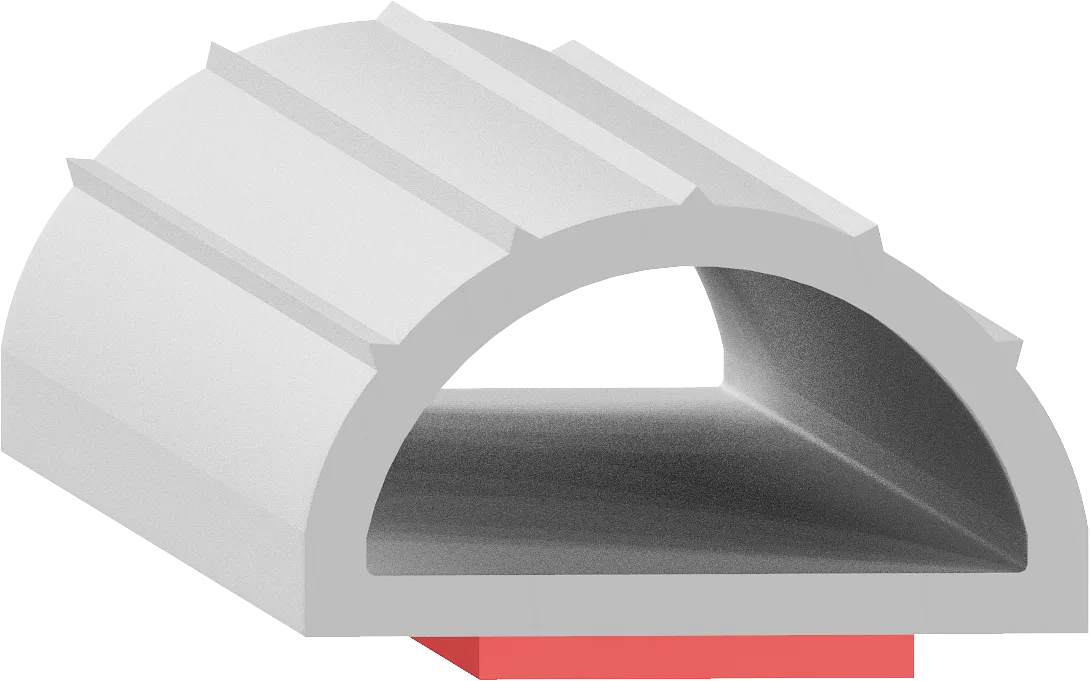

Cross-section drawing of SD-244-T-W — Cross-section — SD-244-T-WNot to scale

Specification

As drawn.

Specification for SD-244-T-W
Width	0.900" 22.9 mm
Height	0.515" 13.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	White
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
