TH-535-W copy

TH-535-W

W × H3.950 × 0.200 in MaterialRubber

Request a quote for TH-535-W → Spec sheet (PDF) Print spec sheet

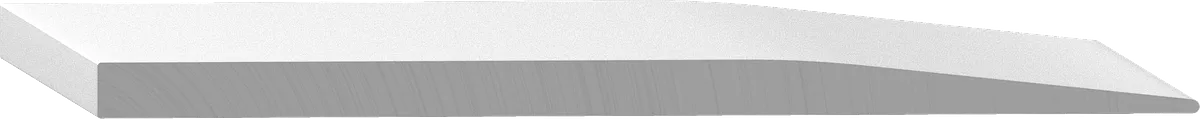

Cross-section drawing of TH-535-W — Cross-section — TH-535-WNot to scale

Specification

As drawn.

Specification for TH-535-W
Width	3.950" 100.3 mm
Height	0.200" 5.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	White
Shape	Flap Seal
Flap	3.950" 100.3 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

7 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

TH-200 2.000 × 0.200 in · Rubber TH-250 2.500 × 0.200 in · Rubber TH-275 2.875 × 0.200 in · Rubber TH-530 3.500 × 0.200 in · Rubber TH-535 3.950 × 0.200 in · Rubber TH-545 4.500 × 0.200 in · Rubber TH-546 4.500 × 0.125 in · Rubber
