TH-535 copy

TH-535

W × H3.950 × 0.200 in MaterialRubber

Request a quote for TH-535 → Spec sheet (PDF) Print spec sheet

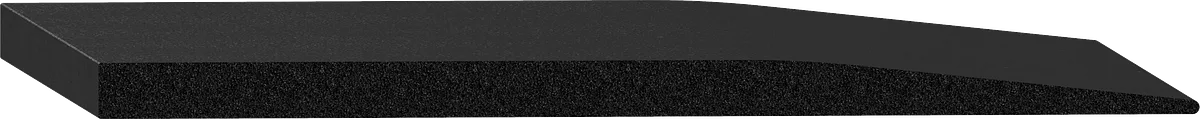

Cross-section drawing of TH-535 — Cross-section — TH-535Not to scale

Specification

As drawn.

Specification for TH-535
Width	3.950" 100.3 mm
Height	0.200" 5.1 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Shape	Flap Seal
Flap	3.950" 100.3 mm

Coil lengths: 50 ft · 150 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

7 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

TH-200 2.000 × 0.200 in · Rubber TH-250 2.500 × 0.200 in · Rubber TH-275 2.875 × 0.200 in · Rubber TH-530 3.500 × 0.200 in · Rubber TH-535-W 3.950 × 0.200 in · Rubber TH-545 4.500 × 0.200 in · Rubber TH-546 4.500 × 0.125 in · Rubber
