SD-1205-WT-150-Opening copy

SD-1205-WT .150 Opening

W × H0.340 × 0.550 in MaterialPVC

Edge Trims

Request a quote for SD-1205-WT-150-Opening → Spec sheet (PDF) Print spec sheet

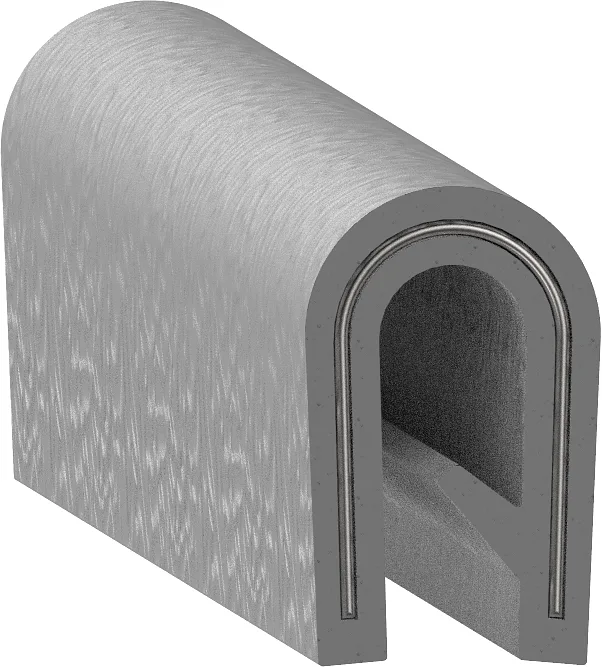

Cross-section drawing of SD-1205-WT-150-Opening — Cross-section — SD-1205-WT-150-OpeningNot to scale

Specification

As drawn.

Specification for SD-1205-WT-150-Opening
Width	0.340" 8.6 mm
Height	0.550" 14.0 mm
Flange	0.170" 4.3 mm
Material	PVC
Durometer	78 Shore A
Colour	White
Texture	Leather Grain
Mount	Push On
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.
