SD-504-W

W × H1.400 × 0.650 in MaterialRubber

Bulb Seals

Request a quote for SD-504-W → Spec sheet (PDF) Print spec sheet

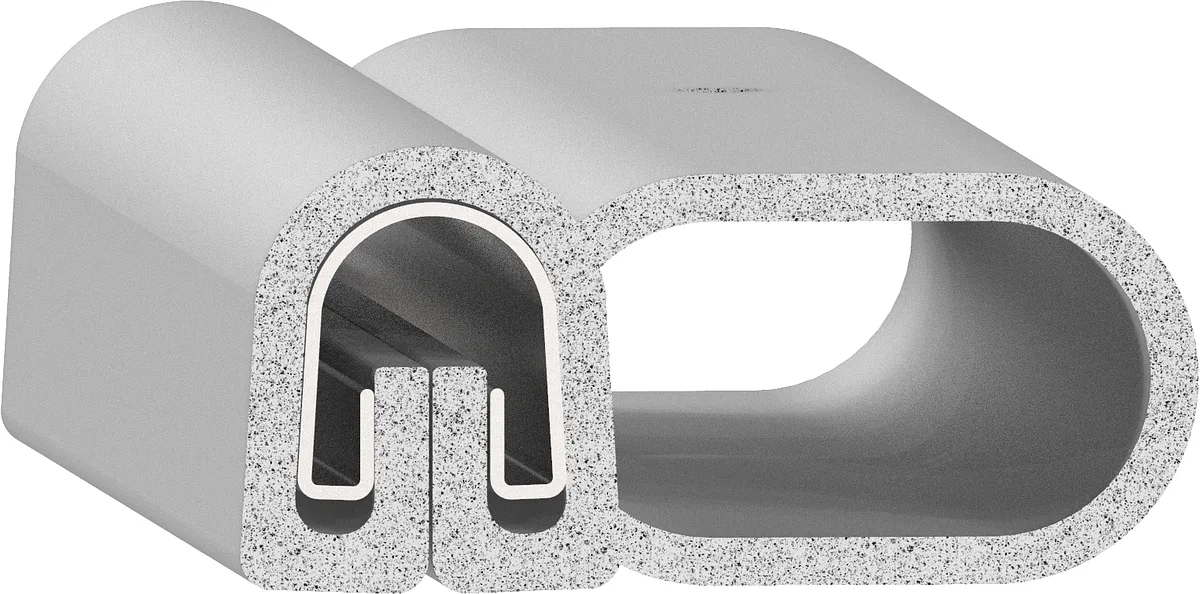

Cross-section drawing of SD-504-W — Cross-section — SD-504-WNot to scale

Specification

As drawn.

Specification for SD-504-W
Width	1.400" 35.6 mm
Height	0.650" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	White
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-504 1.400 × 0.650 in · Rubber SD-504-500L 1.465 × 0.775 in · Rubber SD-504-N 1.475 × 0.650 in · Rubber
